186 Jumpers and Connectors

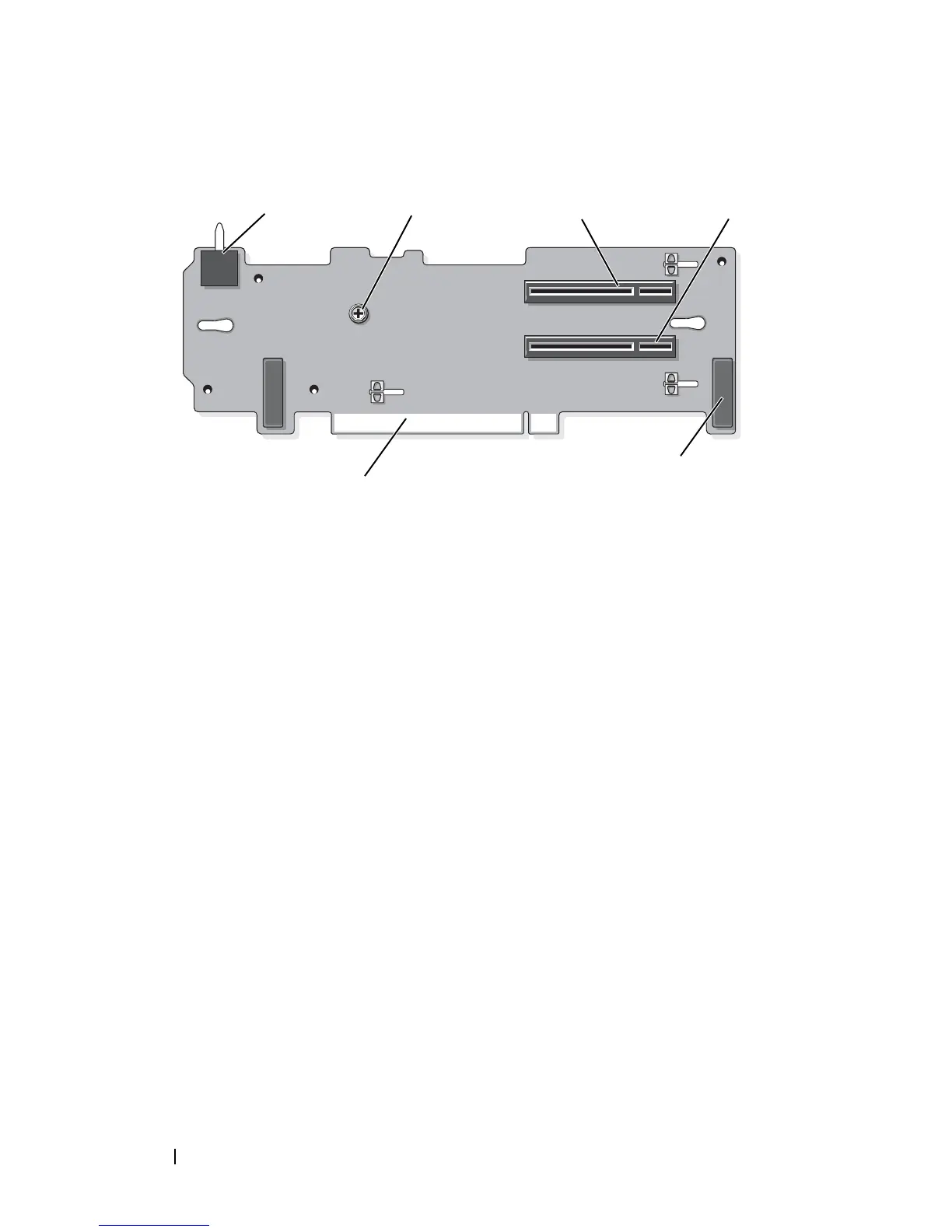

Figure 6-7. Standard PCIe Expansion-Card Riser 2 Components
1 chassis intrusion switch 2 screw
3 slot 3 PCIe x8 link (full-height, 24.13-
cm [9.5-in] length)
4 slot 4 PCIe x8 link (full-height, 24.13-
cm [9.5-in] length)
5 pin collars (2) 6 card edge connector
3
4
5
1
2
6
