Inside the system

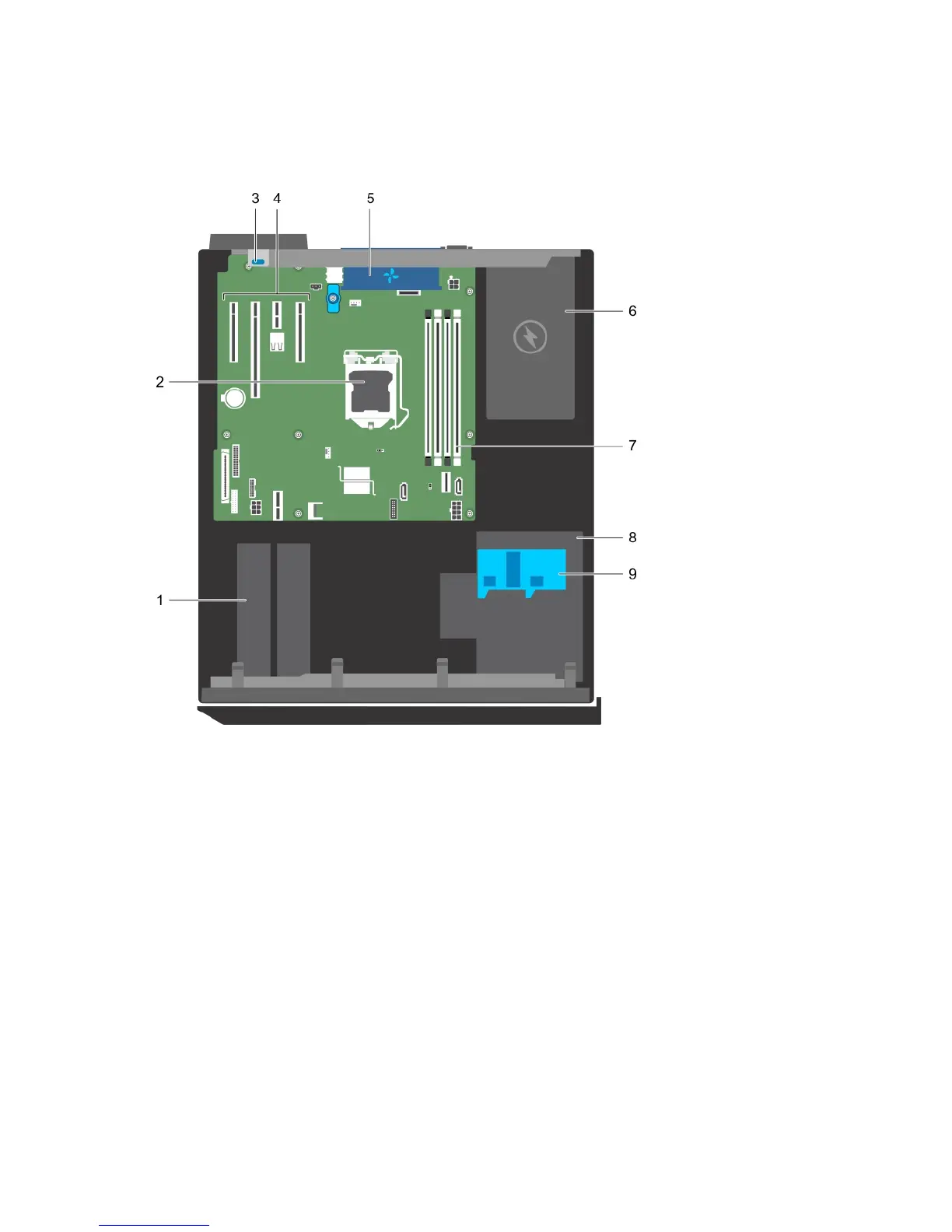

Figure 7. Inside the system
1. hard drive 2. processor
3. expansion card retention latch 4. PCIe slots (4)
5. system fan 6. power supply unit
7. memory slots (4) 8. hard drive cage
9. hard drive cage latch
