Item Indicator, Button, or
Connector
Icon Description
12 VGA connector Allows you to connect a video input.
LCD Panel Features
NOTE
: The LCD panel is present only on PowerEdge R720.
The system's LCD panel provides system information and status and error messages to indicate when the system is
operating correctly or when the system needs attention. See System Error Messages for information about specific
error codes.
• The LCD backlight lights blue during normal operating conditions and lights amber to indicate an error condition.
• The LCD backlight is off when the system is in standby mode and can be turned on by pressing either the Select,
Left, or Right button on the LCD panel.
• The LCD backlight remains off if LCD messaging is turned off through the iDRAC utility, the LCD panel, or other
tools.

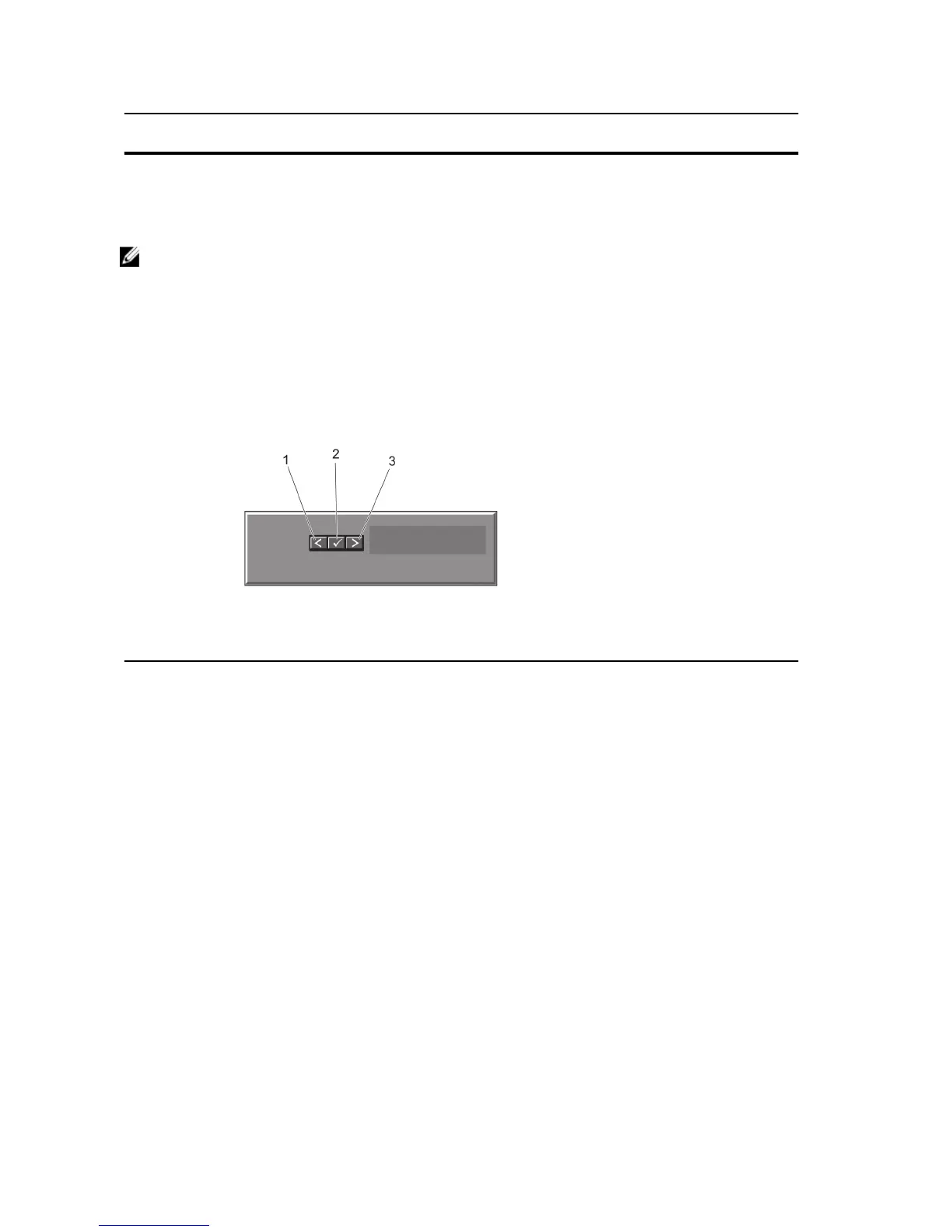

Figure 4. LCD Panel Features
Item Button Description
1 Left Moves the cursor back in one-step
increments.
2 Select Selects the menu item highlighted by
the cursor.
3 Right Moves the cursor forward in one-step
increments.
During message scrolling:
• Press once to increase
scrolling speed
• Press again to stop
• Press again to return to
default scrolling speed
• Press again to repeat the
cycle
Home Screen
The Home screen displays user-configurable information about the system. This screen is displayed during normal
system operation when there are no status messages or errors. When the system is in standby mode, the LCD backlight
14
