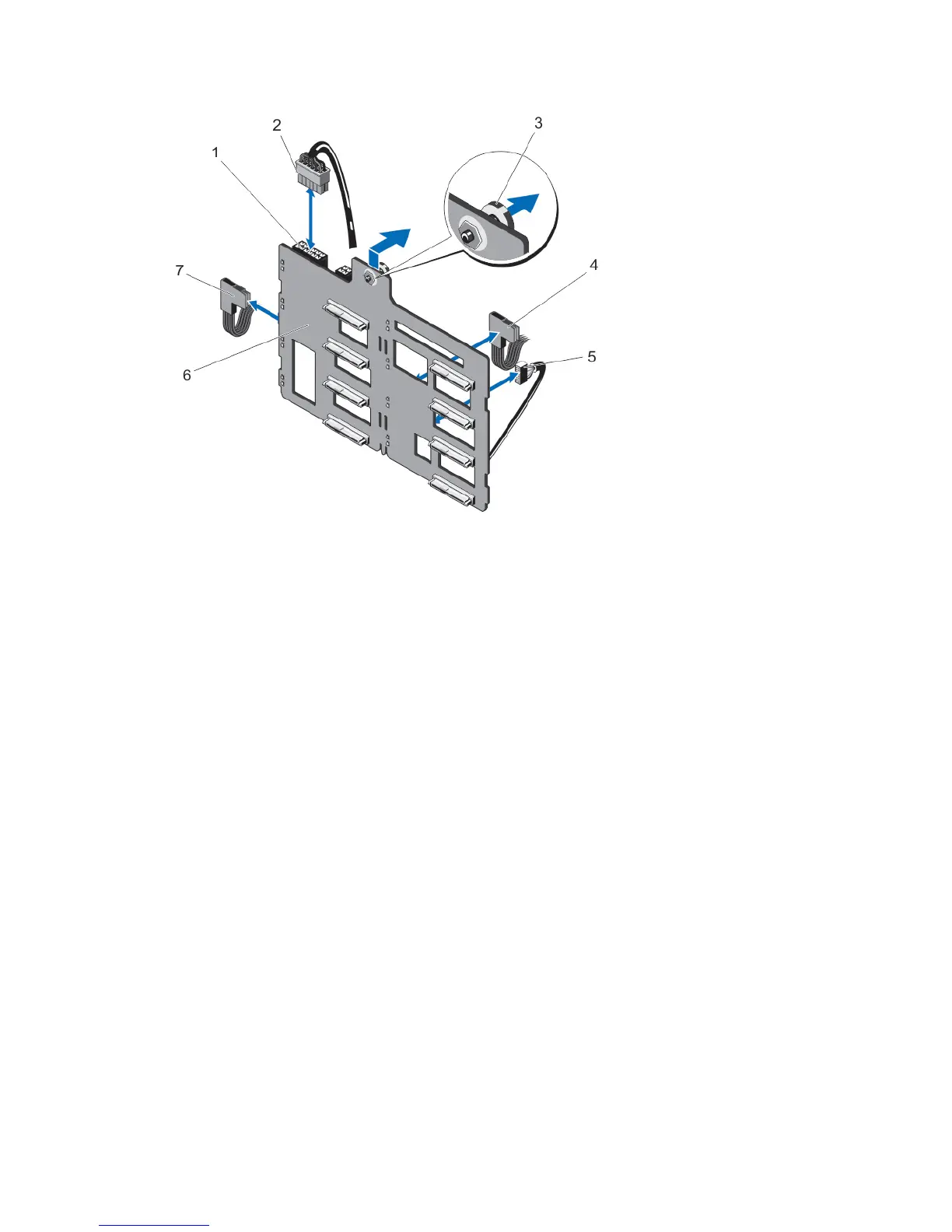

Figure 40. Removing and Installing a 3.5 Inch (x8) SAS/SATA Backplane With a Single PERC Card
1. power connector
2. power cable
3. release pin
4. SAS B cable
5. signal cable
6. backplane
7. SAS A cable
