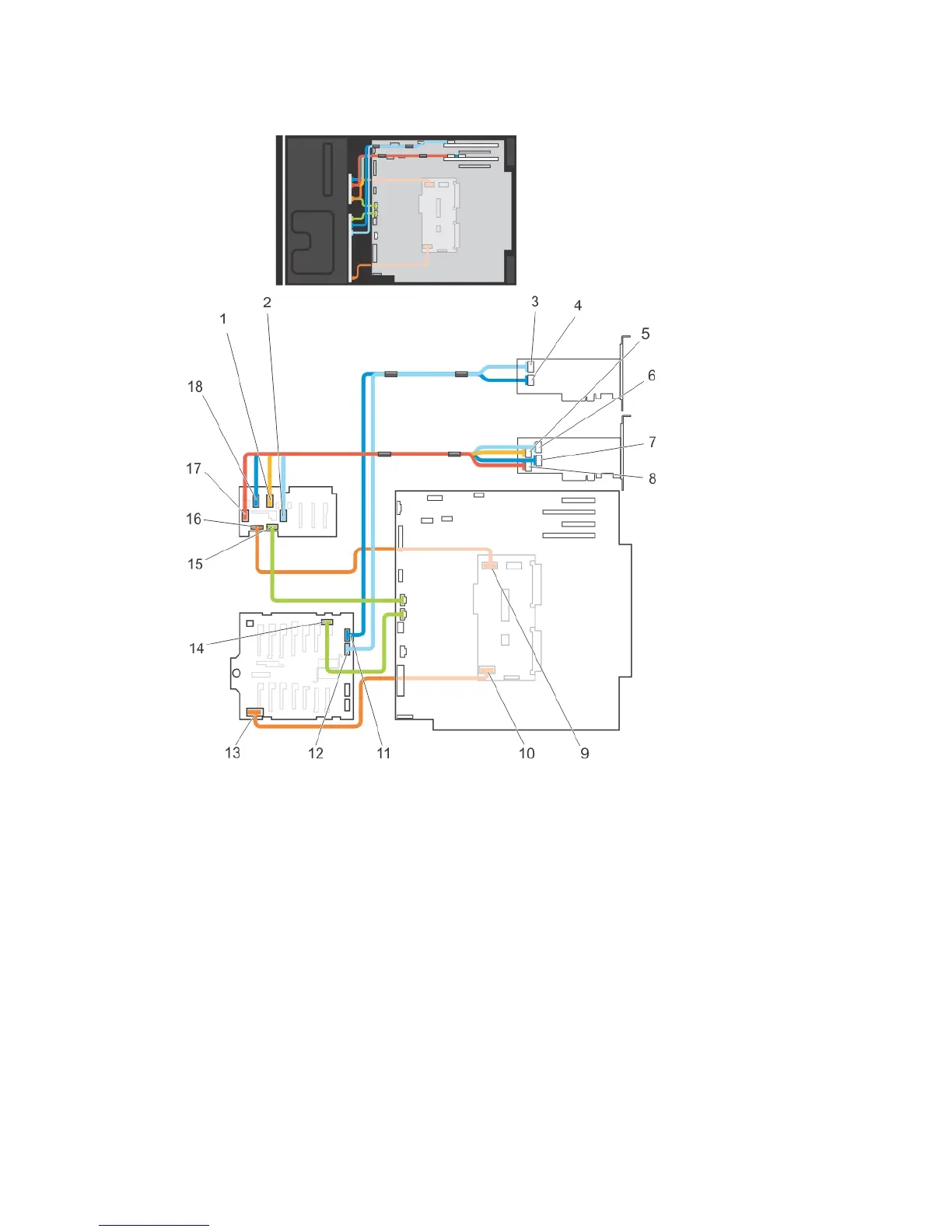

Figure 49. Cabling—2.5 Inch (x16) Plus 2.5 Inch (x4) SAS/SATA Backplane
1. PCIe B cable on PCIe SSD backplane
2. PCIe A cable on PCIe SSD backplane
3. SAS B connector on PERC
4. SAS A connector on PERC
5. PCIe D cable on PCIe bridge card
6. PCIe C cable on PCIe bridge card
7. PCIe B cable on PCIe bridge card
8. PCIe A cable on PCIe bridge card
9. PCIe SSD backplane power connector on PIB
10. backplane power connector on PIB
11. SAS A connector on backplane
12. SAS B connector on backplane
13. power connector on backplane
14. signal connector on backplane
15. signal connector on PCIe SSD backplane
16. power connector on PCIe SSD backplane
17. PCIe D cable on PCIe SSD backplane
18. PCIe C cable on PCIe SSD backplane
