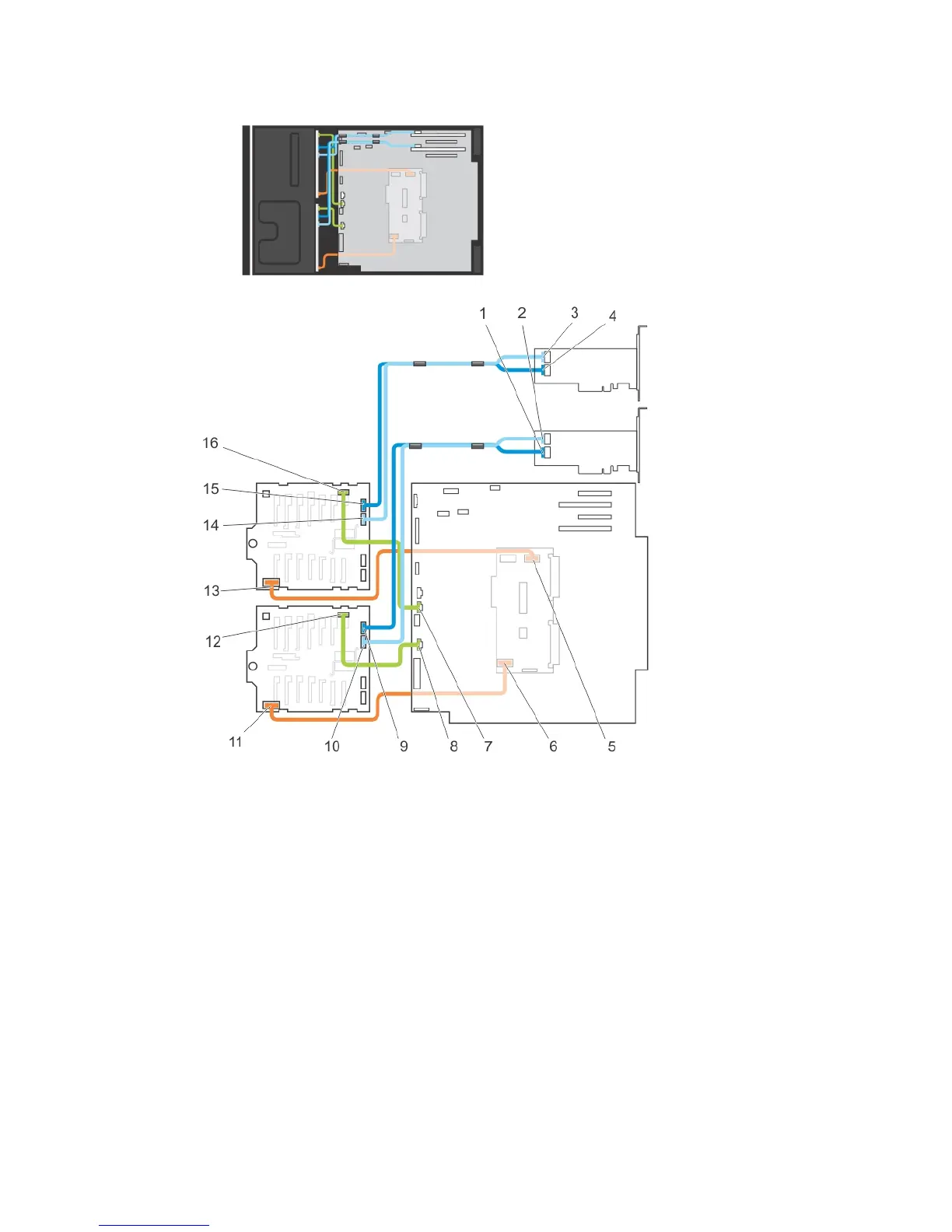

Figure 51. Cabling—2.5 Inch (x32) SAS/SATA Backplane With Two PERC Cards
1. SAS A connector on 2nd PERC
2. SAS B connector on 2nd PERC
3. SAS B connector on 1st PERC
4. SAS A connector on 1st PERC
5. backplane 1 power connector on PIB
6. backplane 2 power connector on PIB
7. signal connector 1 on system board
8. signal connector 2 on system board
9. SAS A connector on backplane 2
10. SAS B connector on backplane 2
11. power connector on backplane 2
12. signal connector on backplane 2
13. power connector on backplane 1
14. SAS B connector on backplane 1
15. SAS A connector on backplane 1
16. signal connector on backplane 1
