PowerEdge T710 Technical Guide 15

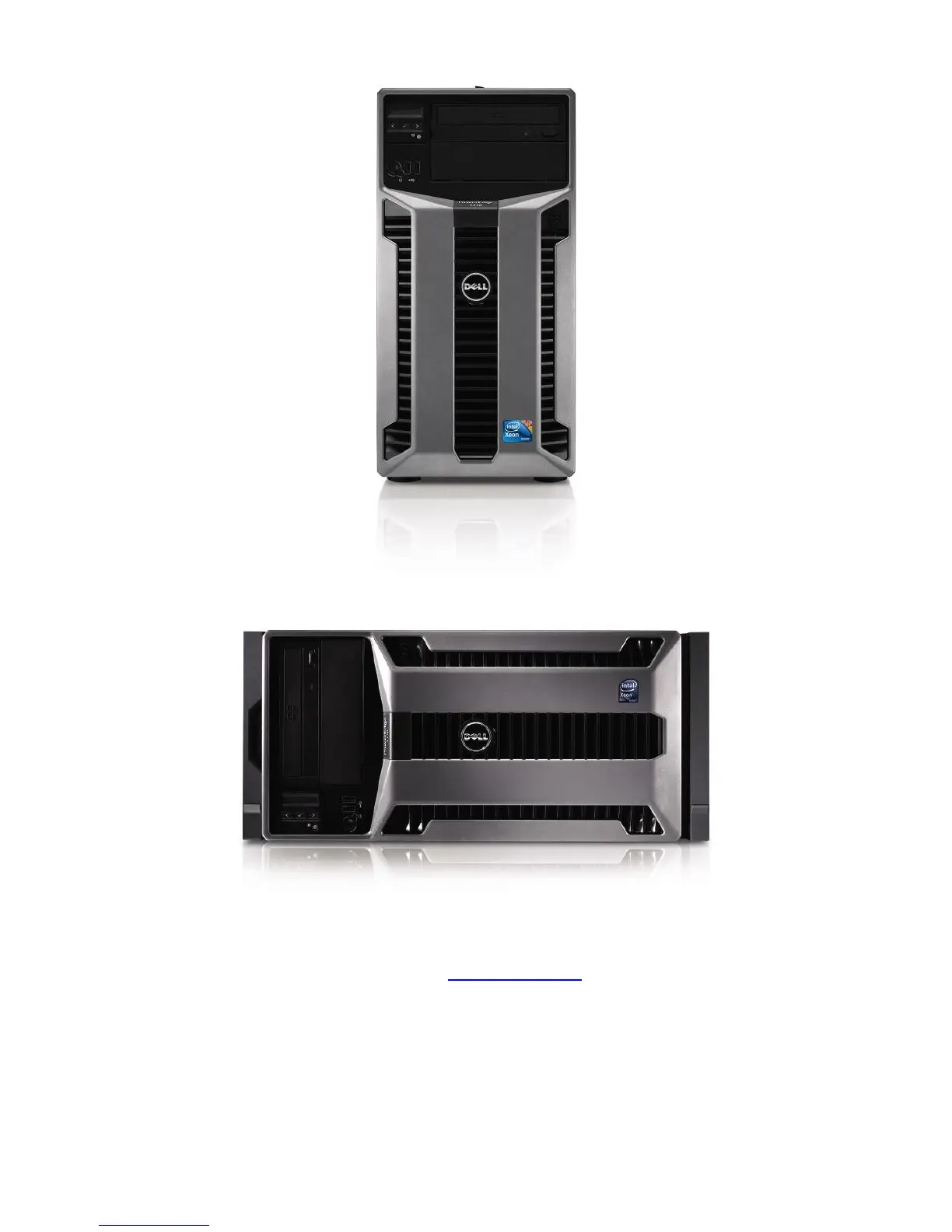

Front View (Tower Configuration) Figure 2.
Front View (Rack Configuration) Figure 3.
See the Front-Panel Features and Indicators section in the About Your System chapter of the
PowerEdge T710 Hardware Owner’s Manual on Support.Dell.com for more information.
4.5 Back Panel View and Features
Figure 4 shows the back view of the PowerEdge T710.
