Dell PowerEdge T710 - Hard Disk Drive Carriers; Empty Drive Bays; RAID Configurations; Table 16. Factory RAID Configurations

Dell
PowerEdge T710 Technical Guide 40
Form Factor
Capacity
Speed
Type
2.5‖
149GB
N/A
SAS SSD
3.5‖
250GB, 500GB, 1TB, 2TB, 4TB
7.2K
SATA
3.5‖
500GB, 1TB, 2TB, 3TB, 4TB
7.2K
NL SAS
3.5‖
146GB
10K
SAS
3.5‖
146GB, 300GB, 450GB, 600GB
15K
SAS
12.4.1 Hard Disk Drive Carriers
The T710 supports the Dell 2.5‖ and 3.5‖ hard drive carriers. See Figure 8.

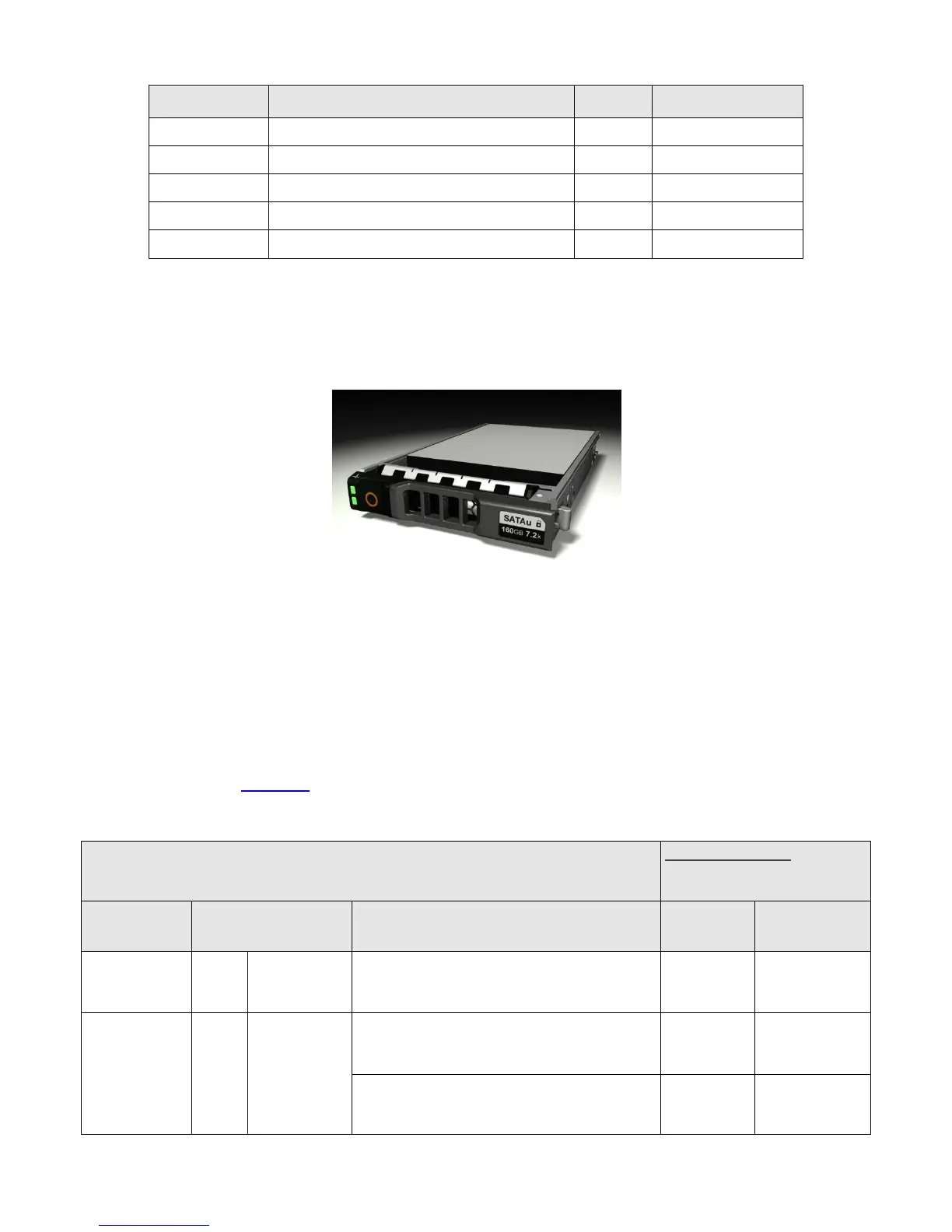

Dell 2.5” Hard Drive Carrier Figure 8.
12.4.2 Empty Drive Bays
For the slots that are not occupied by drives, a carrier blank is provided to maintain proper cooling,
maintain a uniform appearance to the unit, and provide EMI shielding.
12.5 RAID Configurations
See Table 16 for information on factory RAID configurations. For information on additional
configurations, visit Dell.com.
Factory RAID Configurations Table 16.
Non Mixed Drives
All SATA, all SAS, or all SSD
Configuration
Type
Configuration
Description
Min HDD
Max HDD
SAS/SATA—
No RAID
0
MSS
Integrated SAS/SATA No RAID (SAS 6/iR)
2.5‖ = N/A
3.5‖ = 1
2.5‖ = N/A
3.5‖ = 8
SAS/SATA—
RAID
1
MSSR0
Integrated SSD/SAS/SATA RAID 0 (SAS
6/iR)
3.5‖ = 2
2.5‖ = 2
2.5‖ = N/A
3.5‖ = 8
Integrated SSD/SAS/SATA RAID 0 (PERC
6/i)
2.5‖ = 2
3.5‖ = 2
2.5‖ = 16/8
3.5‖ = 8
