 Express Card Cage
DellPrecision™ServiceManual
Removing the Express Card Cage
Replacing the Express Card Cage

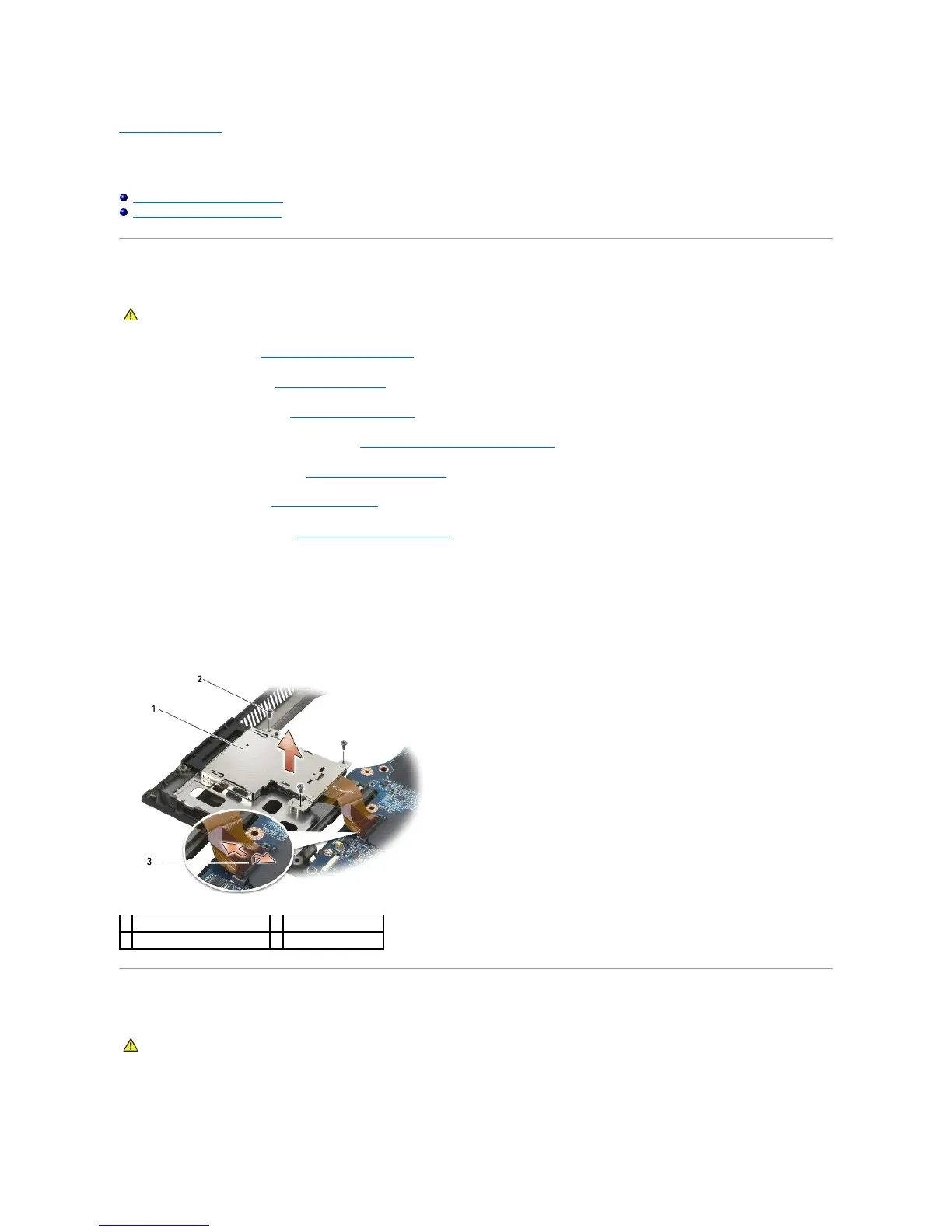

Removing the Express Card Cage


1. Follow the procedures in Before Working on Your Computer.

2. Remove the hard drive (see Removing the Hard Drive).

3. Remove the modular drive (see Removing the Modular Drive).

4. Remove the bottom of the base assembly (see Removing the Bottom of the Base Assembly).

5. Remove the display assembly (see Removing the Display Assembly).

6. Remove the keyboard (see Removing the Keyboard).

7. Remove the palm rest assembly (Removing the Palm Rest Assembly).

8. If a card is in the cage, remove the card.

9. Remove the three M2 x 3-mm screws that secure the Express card cage to the base assembly.

10. Disconnect the Express card cable from the system board.

11. Lift the Express card cage away from the system board.
Replacing the Express Card Cage


1. Attach one side of the carrier and then the other and set it in place.

2. Replace the three M2 x 3-mm screws to secure the Express card cage to the base assembly.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions that shipped with your computer.
1
Express card carrier
2
M2 x 3-mm screw (3)
3
Express card cable connector


CAUTION: Before you begin any of the procedures in this section, follow the safety instructions that shipped with your computer.
