Dell Precision Mobile Workstation M4800 - Page 35

a. battery
b. base cover
c. keyboard trim
d. keyboard
e. optical drive
f. hard drive
g. palm rest
h. heat-sink fan
i. heatsink

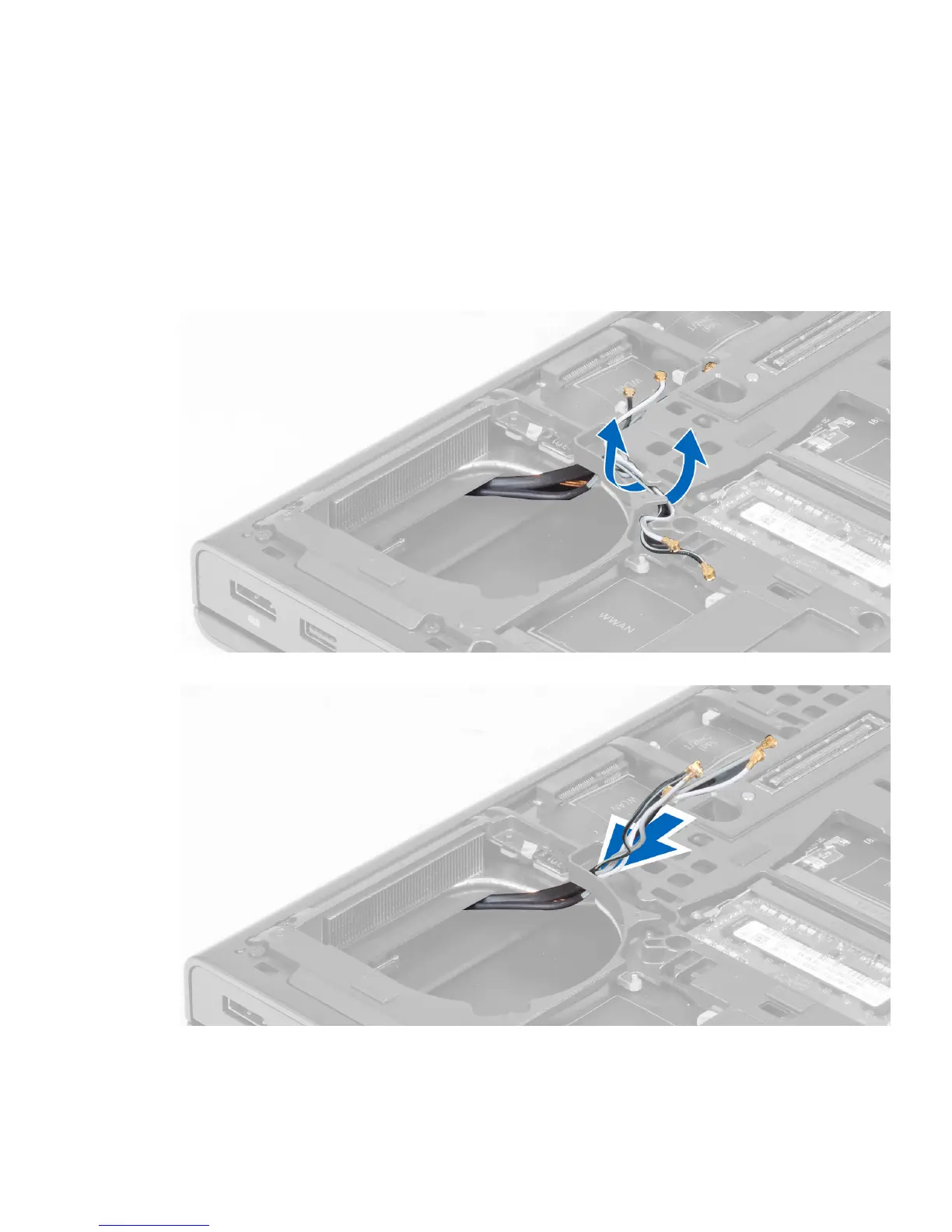

3. Disconnect and un-route any antenna cables connected to the installed wireless cards.
4. Remove the antenna cables from the routing channels.
5. Perform the following steps as shown in the illustration:
