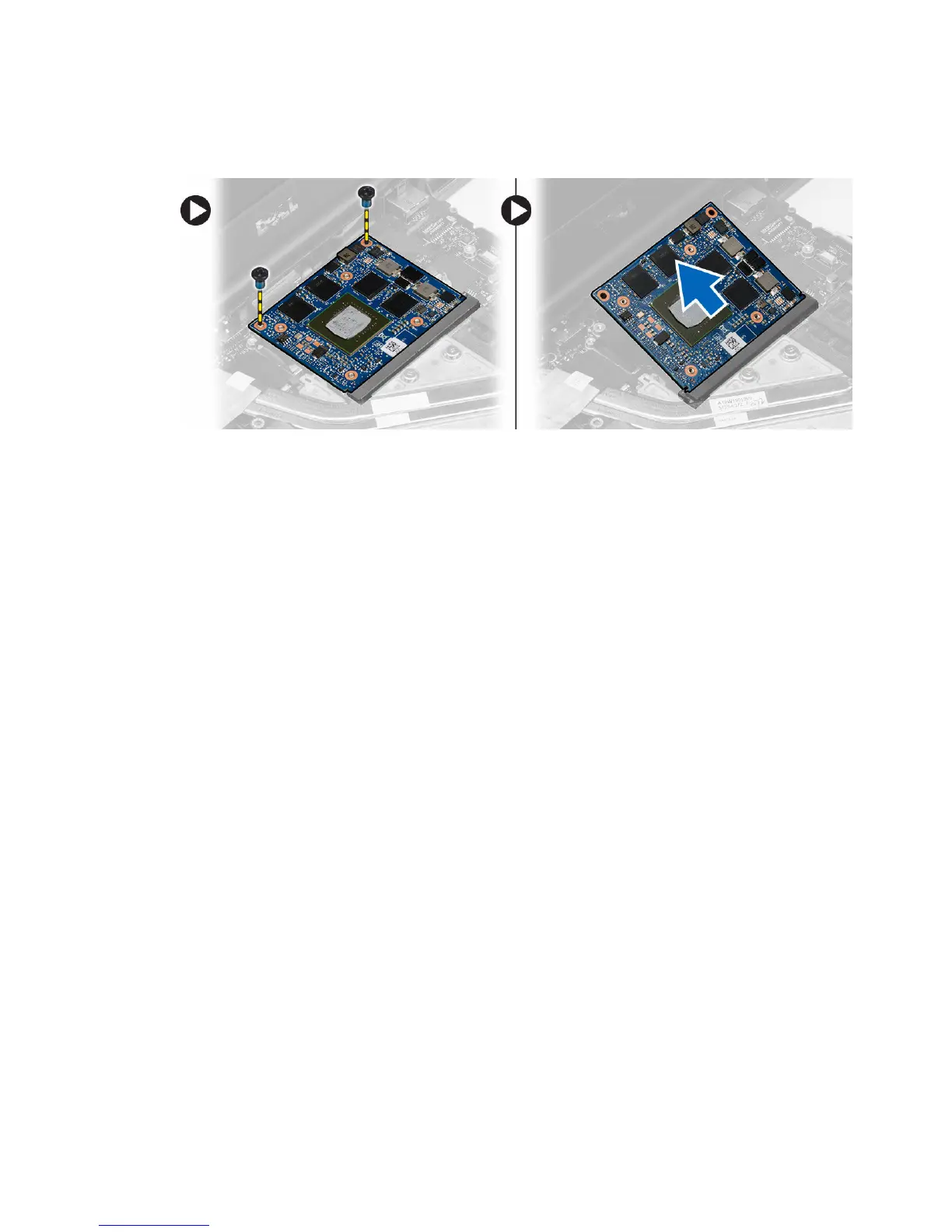

3. Perform the following steps as shown in the illustration:
a. Remove the screws that secure the video card to the computer.
b. Remove the video card from the computer.
Installing the Video Card
1. Slide the video card into its original position in the computer.
2. Press down the video card and tighten the screws to secure the video card to the computer.
3. Install the:
a. video-card heat sink
b. video fan
c. palm rest
d. hard drive
e. optical drive
f. keyboard
g. keyboard trim
h. bottom door
i. battery
4. Follow the procedures in After Working Inside Your Computer.
Removing the Input/Output (I/O) Board
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the:
a. SD card
b. battery
c. base cover
d. keyboard trim
e. keyboard
f. optical drive
g. hard drive
h. palmrest
3. Disconnect the ExpressCard module connector from the I/O board.
