Dell Precision Mobile Workstation M4800 - Page 46

5. Remove all mini-cards (if available).

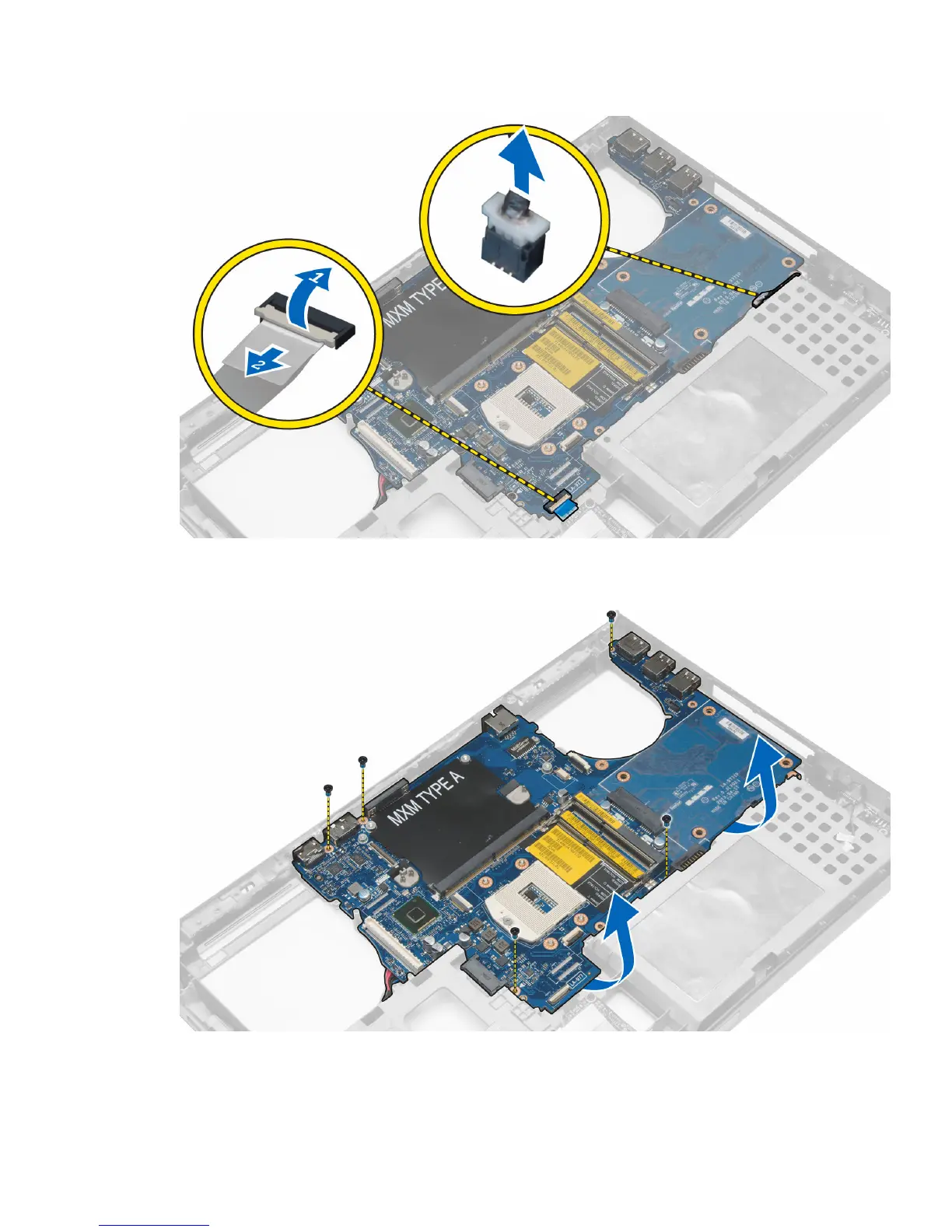

6. Remove the screws that secure the system board in place and lift the top edge of the system board
to a 20° angle.
7. Disconnect the power connector cable and remove the system board.
46
