Removing the Processor
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove:
– front bezel
– cover
– cooling shroud
– front chassis assembly
– fan bracket
– heat sink

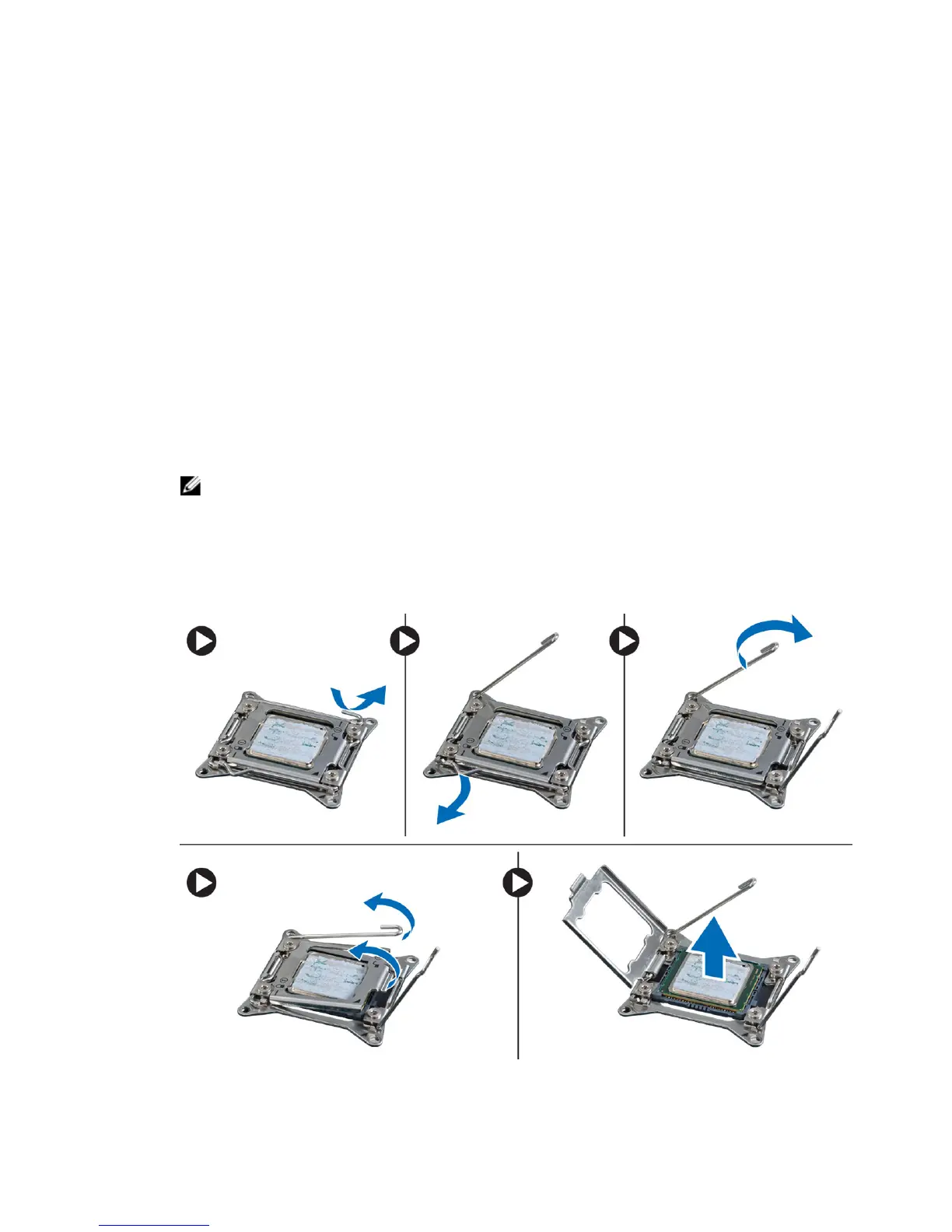

3. To remove the processor:
NOTE: The processor cover is secured by two levers. They have icons that indicate which lever needs to be
opened first and which lever closes first.
a) Press down on the first lever holding the processor cover in place and release it sideways from its retention
hook.
b) Repeat step 'a' to release the second lever from its retention hook.
c) Lift up and remove the processor cover.
d) Lift the processor to remove it from the socket and place it in antistatic package.
