Dell Precision R7610 User Manual

CAUTION: Before touching anything inside your computer, ground yourself by touching an unpainted metal
surface, such as the metal at the back of the computer. While you work, periodically touch an unpainted metal
surface to dissipate static electricity, which could harm internal components.
Recommended Tools
The procedures in this document may require the following tools:
• Small flat-blade screwdriver
• Phillips screwdriver
• Small plastic scribe
Turning Off Your Computer
CAUTION: To avoid losing data, save and close all open files and exit all open programs before you turn off your
computer.
1. Shut down the operating system:
– In Windows 8:
* Using a touch-enabled device:
a. Swipe in from the right edge of the screen, opening the Charms menu and select Settings.
b. Select the and then select Shut down
* Using a mouse:
a. Point to upper-right corner of the screen and click Settings.
b. Click the and select Shut down.
– In Windows 7:
1. Click Start .
2. Click Shut Down.
or
1. Click Start .

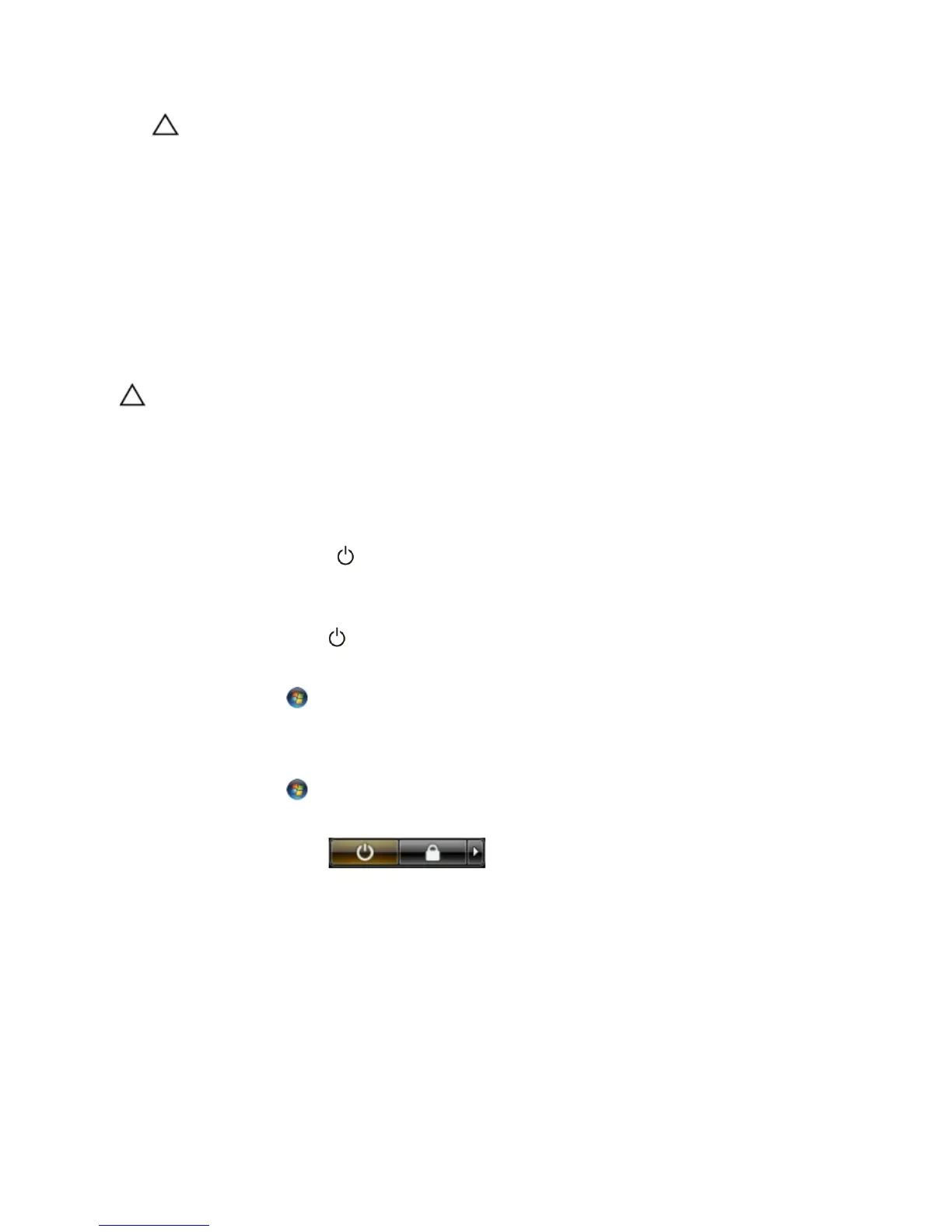

2. Click the arrow in the lower-right corner of the Start menu as shown below, and then click Shut
Down..
2. Ensure that the computer and all attached devices are turned off. If your computer and attached devices did not
automatically turn off when you shut down your operating system, press and hold the power button for about 6
seconds to turn them off.
After Working Inside Your Computer
After you complete any replacement procedure, ensure you connect any external devices, cards, and cables before
turning on your computer.
1. Replace the cover.
8

Dell Precision R7610 Specifications

General

Tcase	86 °C
Bus type	QPI
FSB Parity	No
Processor cache	30 MB
Processor cores	12
Processor model	E5-2697V2
System bus rate	8 GT/s
Processor series	Intel Xeon E5-2600 v2
Processor socket	LGA 2011 (Socket R)
Processor threads	24
Processor codename	Ivy Bridge EP
Number of QPI links	2
Processor frequency	2.7 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	3.0
Processor boost frequency	3.5 GHz
Processor operating modes	64-bit
ECC supported by processor	Yes
PCI Express configurations	x4, x8, x16
Thermal Design Power (TDP)	130 W
Number of processors installed	1
Maximum number of PCI Express lanes	40
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800, 1066, 1333, 1600, 1866 MHz
Memory bandwidth supported by processor (max)	59.7 GB/s
Maximum internal memory supported by processor	768 GB
Memory slots	8x DIMM
Internal memory	32 GB
Memory channels	Quad-channel
Memory clock speed	1600 MHz
Maximum internal memory	128 GB
Storage media	HDD
Optical drive type	-
Total storage capacity	500 GB
Discrete graphics card model	NVIDIA® Quadro® NVS 310
On-board graphics card model	Not available
Operating system installed	Windows 7 Professional
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Headphone outputs	0
USB 2.0 ports quantity	6
PCI Express x16 slots	4
Chassis type	Rack-mounted chassis
Product color	Black, Silver
Rack capacity	2U
Placement supported	Horizontal
Audio system	HD
Product type	Workstation
Motherboard chipset	Intel® C602
Password protection type	BIOS
Sustainability certificates	RoHS
Certification	WEEE
Scalability	2S
Processor ARK ID	75283
Processor package size	52.5 x 51 mm
Supported instruction sets	AVX
Physical Address Extension (PAE)	46 bit
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	0.00

Weight and Dimensions

Depth	753.6 mm
Width	440.6 mm
Height	86.3 mm
Weight	- g
