Setting Up the Monitor
Dell™ S2230MX/S2330MX Monitor User's Guide
Attaching the Stand
Connecting Your Monitor
Removing the Stand

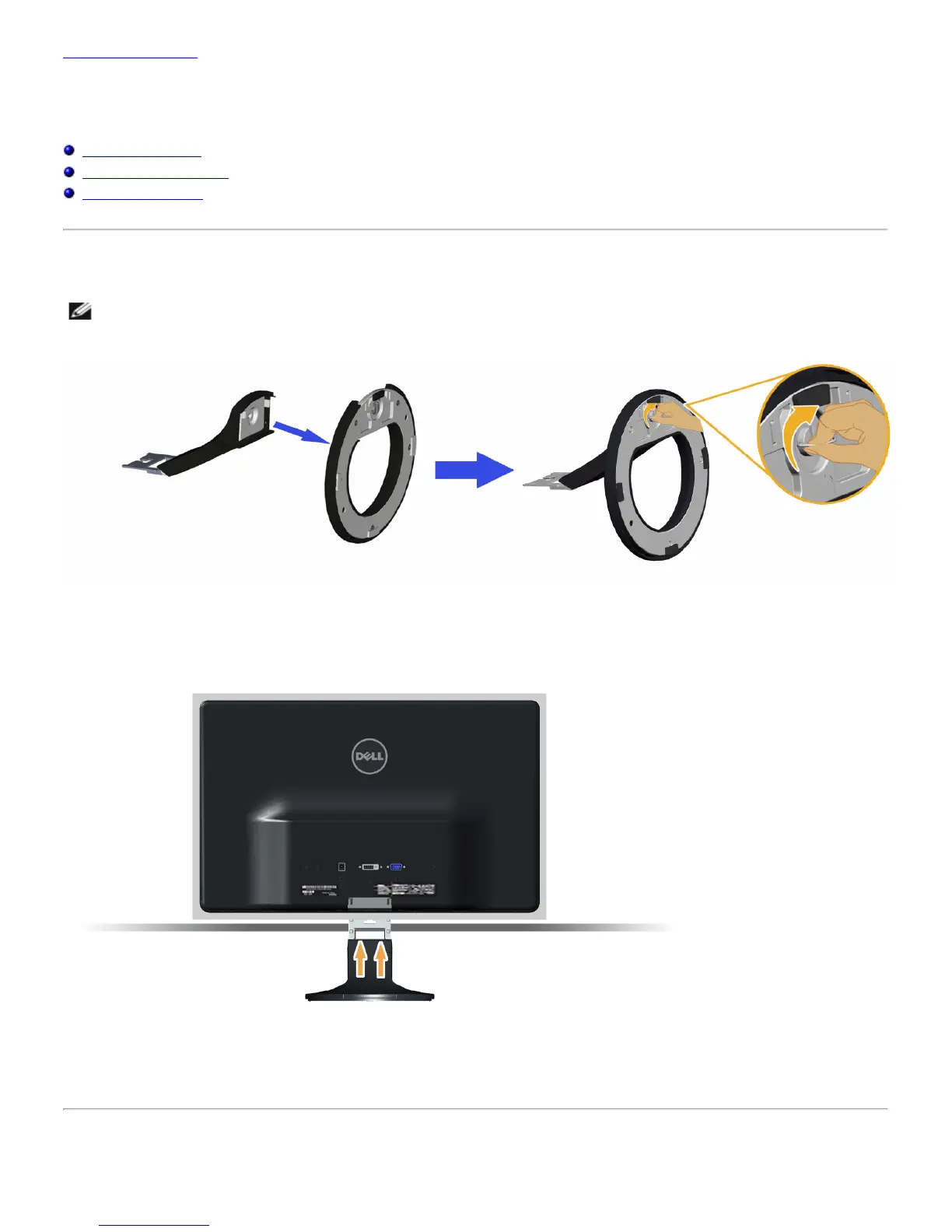

Attaching the Stand
NOTE: The stand base is detached when the monitor is shipped from the factory.
1. Assemble the stand riser to stand base.
a. Attach the stand riser to the stand base.
b. Tighten the screw located on the base.
2. Attach the stand assembly to the monitor:
a. Place the monitor on a soft cloth or cushion near the edge of desk.
b. Align the stand assembly bracket to the monitor groove.
c. Insert the bracket towards monitor until it locks in place.
Connecting Your Monitor
