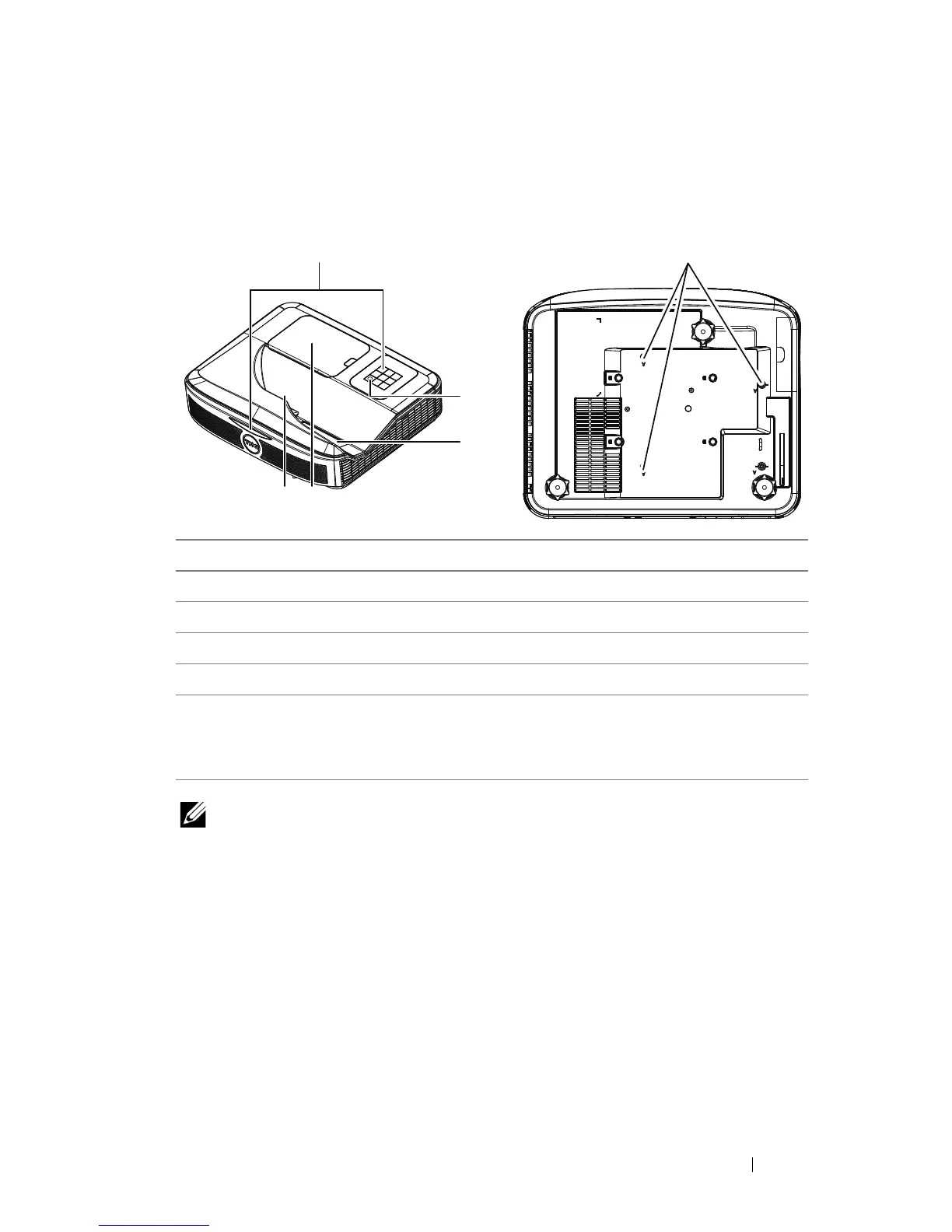

Projector Top and Bottom View
NOTE: Wall mount screw hole M4 X 4. Recommended torque < 15
kgf-cm.
1 Infrared (IR) receivers
2 Power button
3 Camera
4 Lens
5 Lamp cover
6 Mounting holes for wall mount
A : Dell S560 wall mount
B : Universal wall mount
1
4
2
3 5
6
Top View Bottom View
