8 About Your Dell Projector

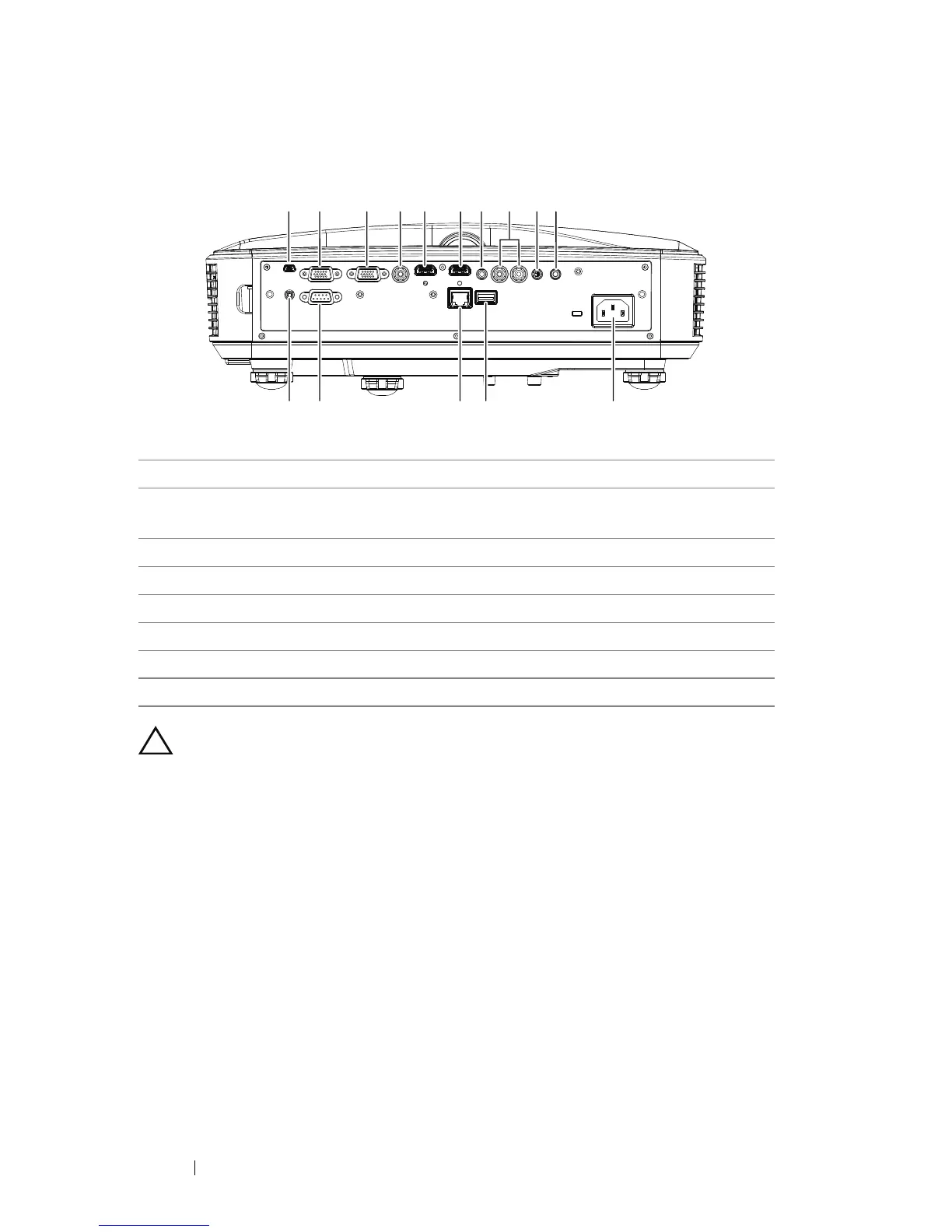

Projector Connections
CAUTION: Before you begin any of the procedures in this section,
follow the Safety Instructions as described on page 9.
1 Mini USB (Mini Type B) 9 Microphone connector
2 VGA Out connector (monitor
loop through)
10 Audio Output connector
3 VGA In connector 11 Power cord connector
4 Composite Video connector 12 USB A connector
5 HDMI 2 connector 13 RJ 45 connector
6 HDMI 1 connector 14 RS232 connector
7 Audio Input connector 15 Touch Unit power
8 Audio RCA connector
1 2 3 4 5 6 7 8 910
11
12131415
