NOTE: An SC4020 storage system cannot be connected to both SC200/SC220 expansion enclosures and SC280
expansion enclosures at the same time. The SC4020 supports only a single chain of SC200/SC220 expansion enclosures
or a single chain of SC280 expansion enclosures.
Storage Center Architecture Options
A Storage Center with an SC4020 storage system can be deployed in the following configurations:
• An SC4020 storage system deployed without SC200/SC220 expansion enclosures.

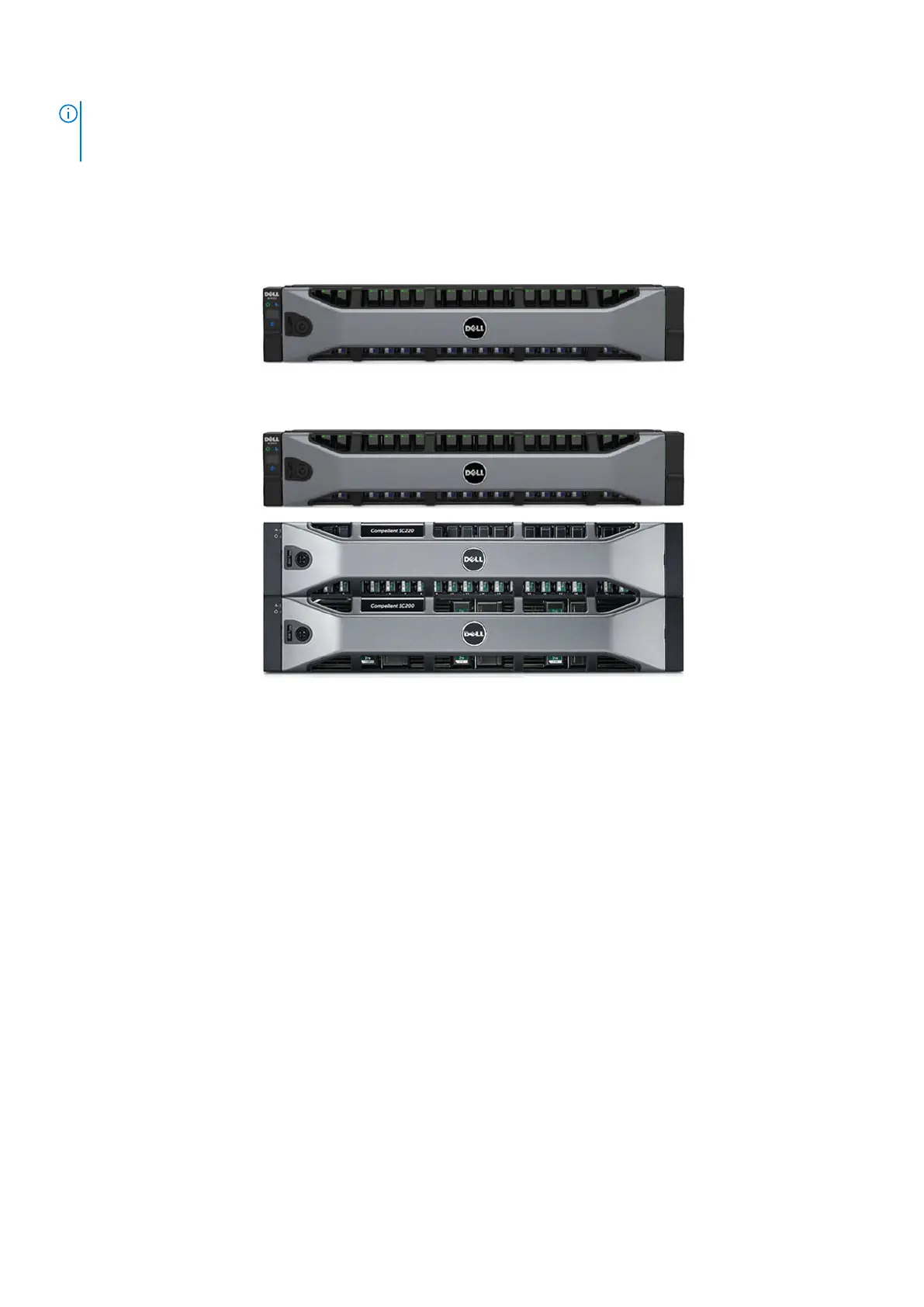

Figure 1. SC4020 Storage System without Expansion Enclosures
• An SC4020 storage system deployed with one or more SC200/SC220 expansion enclosures.
Figure 2. SC4020 Storage System with Two SC200/SC220 Expansion Enclosures
• An SC4020 storage system deployed with up to two SC280 expansion enclosures.
8
