a. Lift the locking tab on the rail.
b. Push the rail towards the back of the chassis until it locks in place.
2. Determine where to mount the storage system in the rack and mark the location
at the front and rear of the rack.
NOTE: The storage system and expansion enclosures each require 2U
of rack space for installation.
3. Position the rails at the marked locations and extend the rails to fit the rack.
4. Insert the top rail pin in the middle hole of the top 1U and insert the bottom rail
pin in bottom hole of the bottom 1U.
5. Insert a screw into the top hole of the bottom 1U and tighten the screw to
secure the rail to the rack.

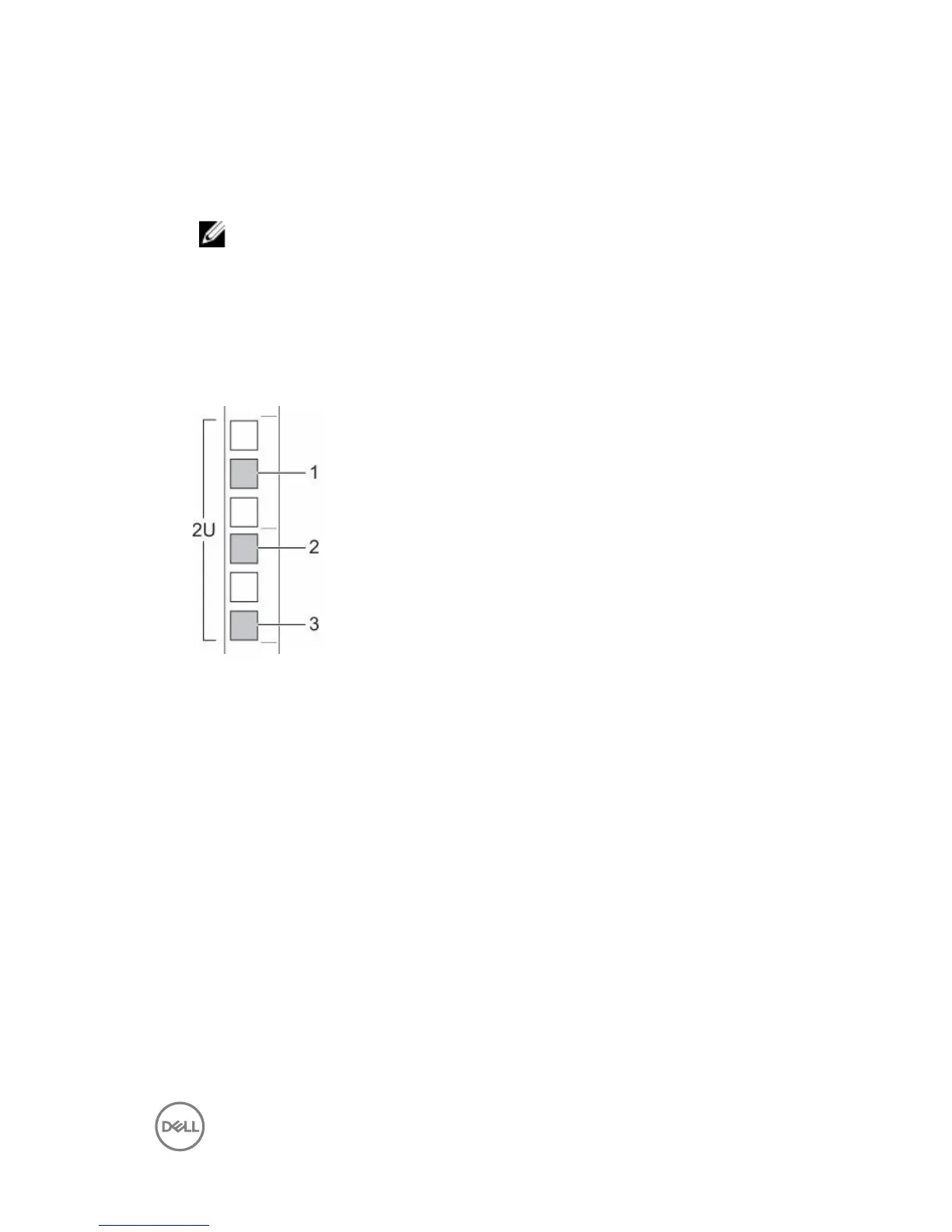

Figure 3. Hole Locations in Rack
1.
Middle hole of top 1U 2. Top hole of bottom 1U
3. Bottom hole of bottom 1U
6. Slide the storage system chassis onto the rails.
