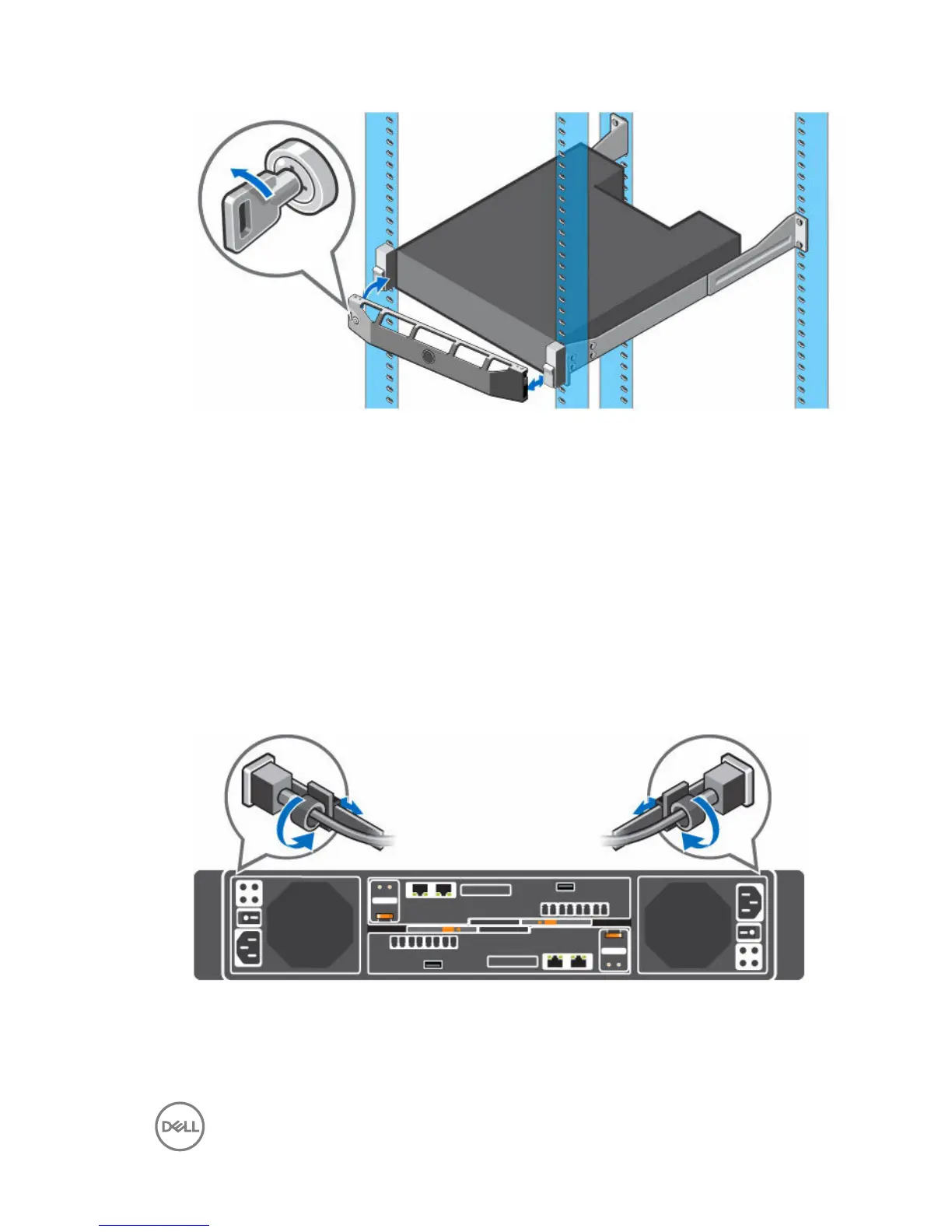

Figure 5. Front Bezel
2. Insert the left end of the bezel into the securing slot until the release latch snaps
into place.
3. Secure the bezel with the keylock.
Connecting the Power Cables
Connect the power cables to the storage system.
1. Before connecting the power cables, make sure that the power switches on the
storage system are in the OFF position.
2. Connect the power cables to the power supplies in the storage system chassis.
Figure 6. Power Cables
3. Secure each power cable to the storage system chassis using the strain relief
fasteners.
13
