Attaching the Soundbar(Optional)
Back to Contents Page
1

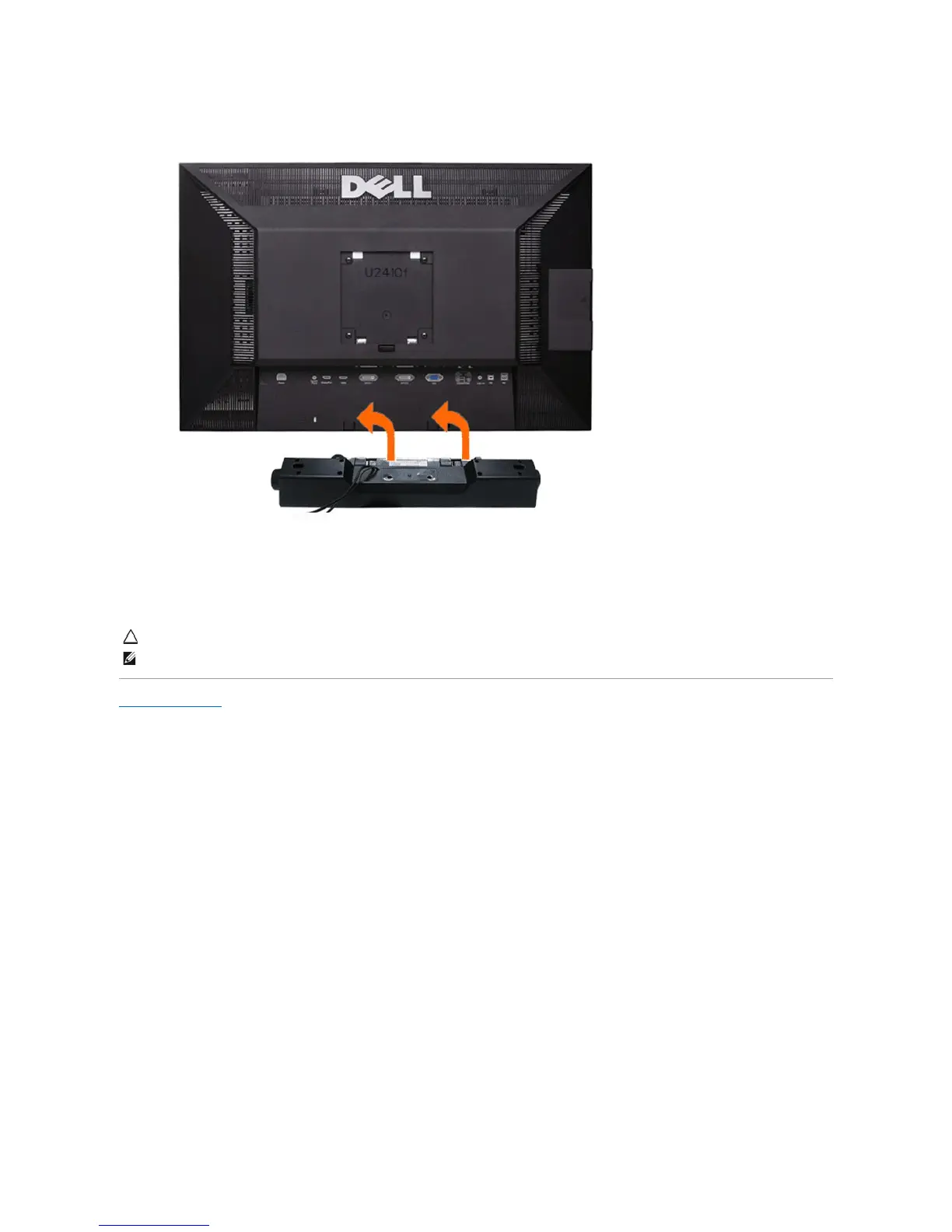

Working from the rear of the monitor, attach Soundbar by aligning the two slots with the two tabs along the bottom rear of the monitor.
2
Slide the Soundbar to the left until it snaps into place.
3
Connect the Soundbar with the DC power connector.
4
Insert the mini stereo plug from the rear of the Soundbar into the computer's audio output jack.
CAUTION: Do not use with any device other than Dell Soundbar
NOTE: Monitor DC power connector +12 V DC output is for Dell Soundbar, that does not have built-in AC adapter, eg Dell AX510.
