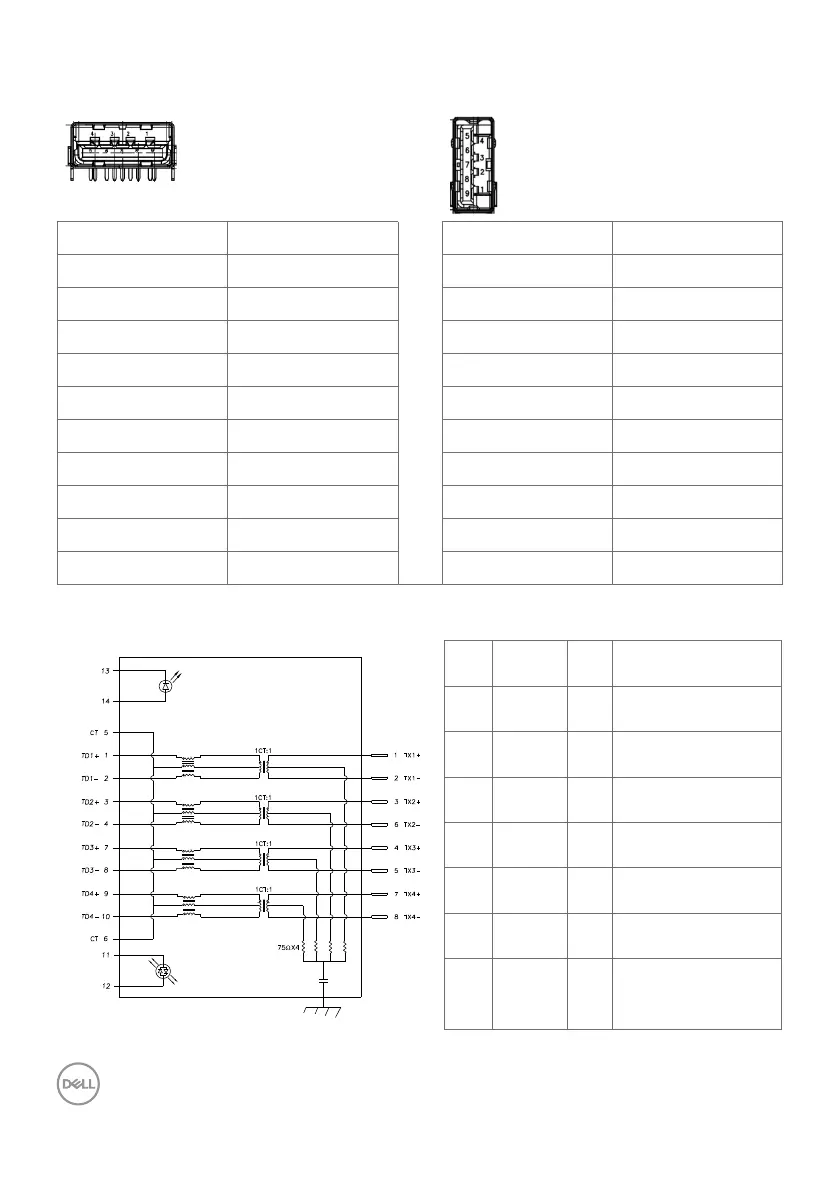

28 | About Your Monitor
USB 3.2 Gen2 (10Gbps)
downstream port (Bottom)
USB 3.2 Gen2 (10Gbps)
downstreamport (Rear)
Pin number Signal name Pin number Signal name
1 VBUS 1 VBUS
2 D- 2 D-
3 D+ 3 D+
4 GND 4 GND
5 StdA_SSRX- 5 StdA_SSRX-
6 StdA_SSRX+ 6 StdA_SSRX+
7 GND_DRAIN 7 GND_DRAIN
8 StdA_SSTX- 8 StdA_SSTX-
9 StdA_SSTX+ 9 StdA_SSTX+
Shell Shield Shell Shield
RJ45 Port (Connector Side) (U2722DE Only)
PHY SIDE
CABLE SIDE
RJ45
GREEN
GREEN
ORANGE
SHIELD
GROUND
2kV, 1000pF
Pin Signal Pin Signal
1 TD1 + 8 TD3 -
2 TD1 - 9 TD4 +
3 TD2 + 10 TD4 -
4 TD2 - 11 GREEN_ORANGE
5 CT 12 GREEN_ORANGE
6 CT 13 GREEN
7 TD3 + 14 GREEN
