Dell Vostro 260s - 13 Input;Output Panel; Removing the I;O Panel

Input/Output Panel 13
Removing The I/O Panel
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the cover .

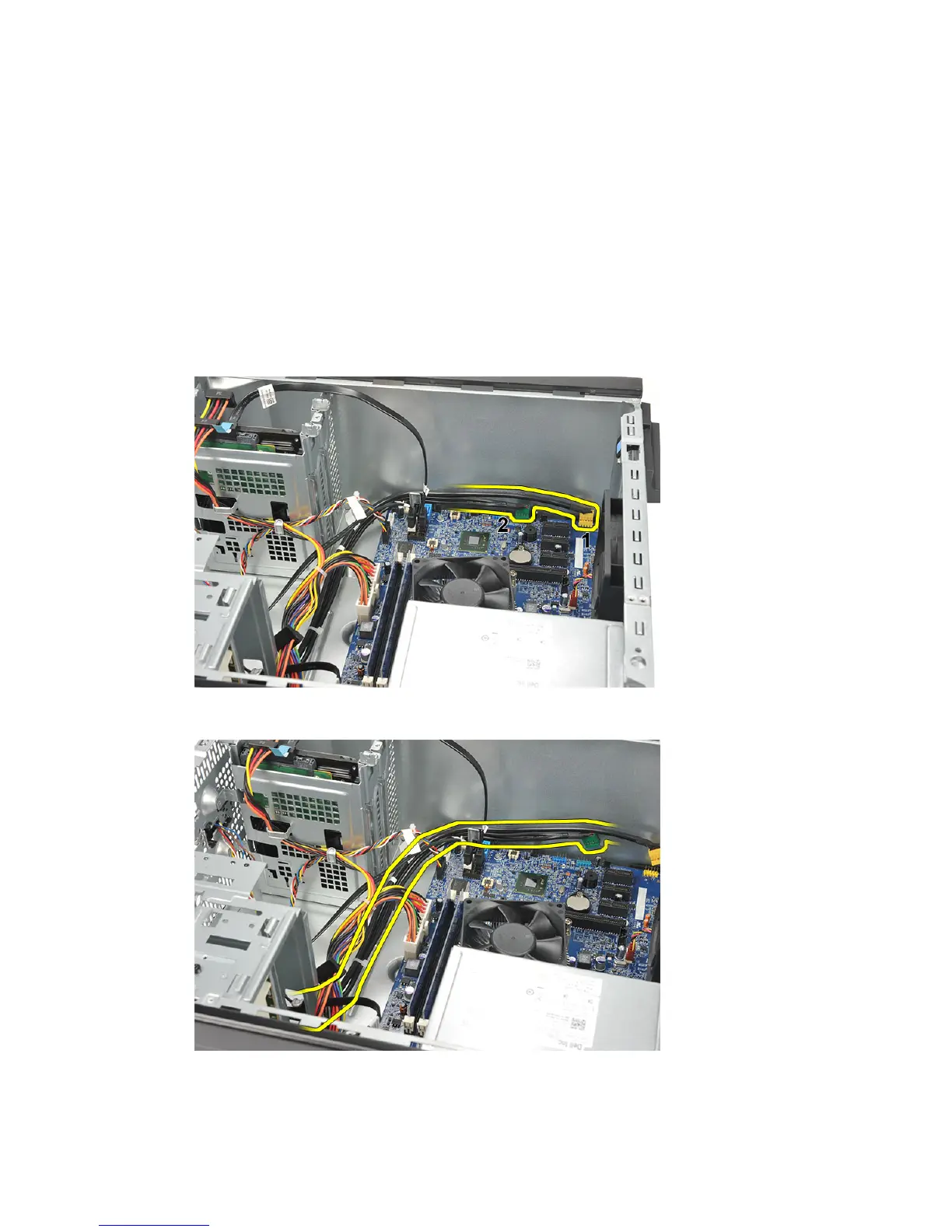

3. Disconnect the audio cable and USB cable from the system board.
4. Un-thread the cable routing from the metal clips.
5. Remove the screw that secures the I/O panel to the computer.
33
