Dell Vostro 260s - 16 System Board; Removing the System Board

System Board 16
Removing The System Board
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the cover .
3. Remove the memory .
4. Remove the fan .
5. Remove the processor .
6. Remove the expansion card .
7. Remove the WLAN card .

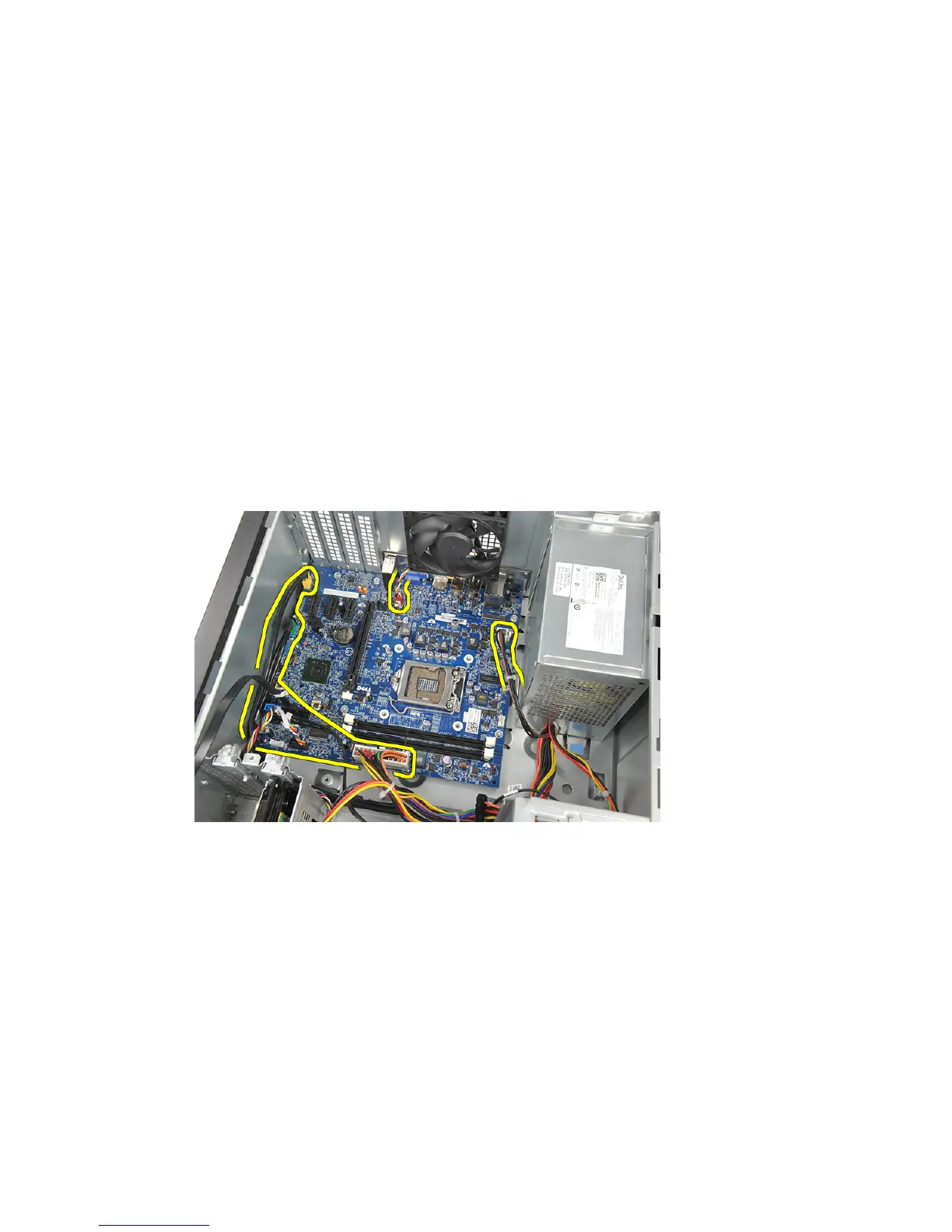

8. Disconnect and un-thread all the cables connected to the system board.
9. Remove the screws that secure the system board to the computer.
41
