Dell Vostro 270 - System Board Layout

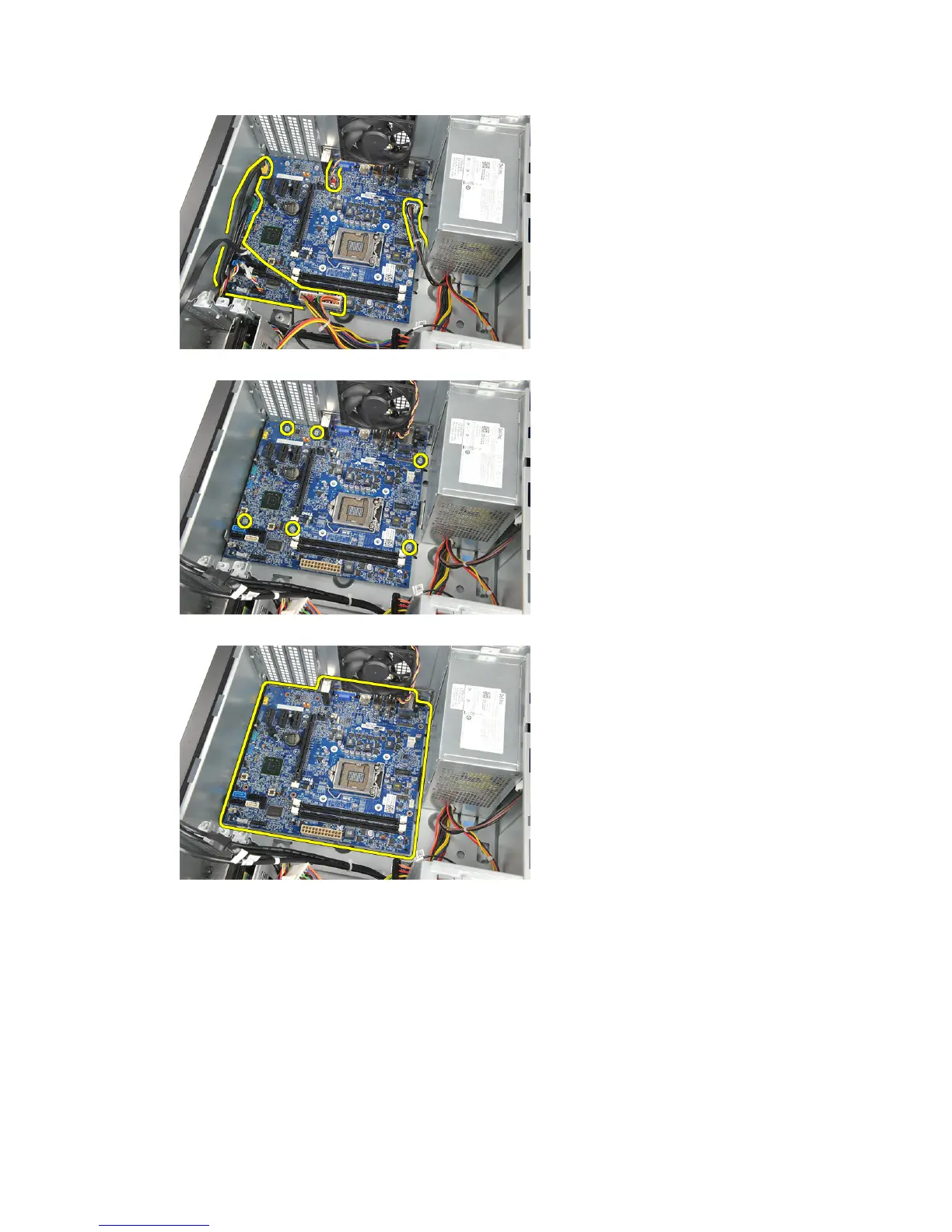

4. Remove the screws that secure the system board to the computer.
5. Slide the system board towards the front of the computer, and then carefully tilt it to a 45–degrees angle.
6. Lift the system board out of the computer chassis and place it in an antistatic packaging.
System Board Layout
The following image displays the system board layout of the computer.
25
