Dell Vostro 470 - Removing The Memory Card Reader; Installing The Memory Card Reader

7
Removing The Memory Card Reader
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the cover.

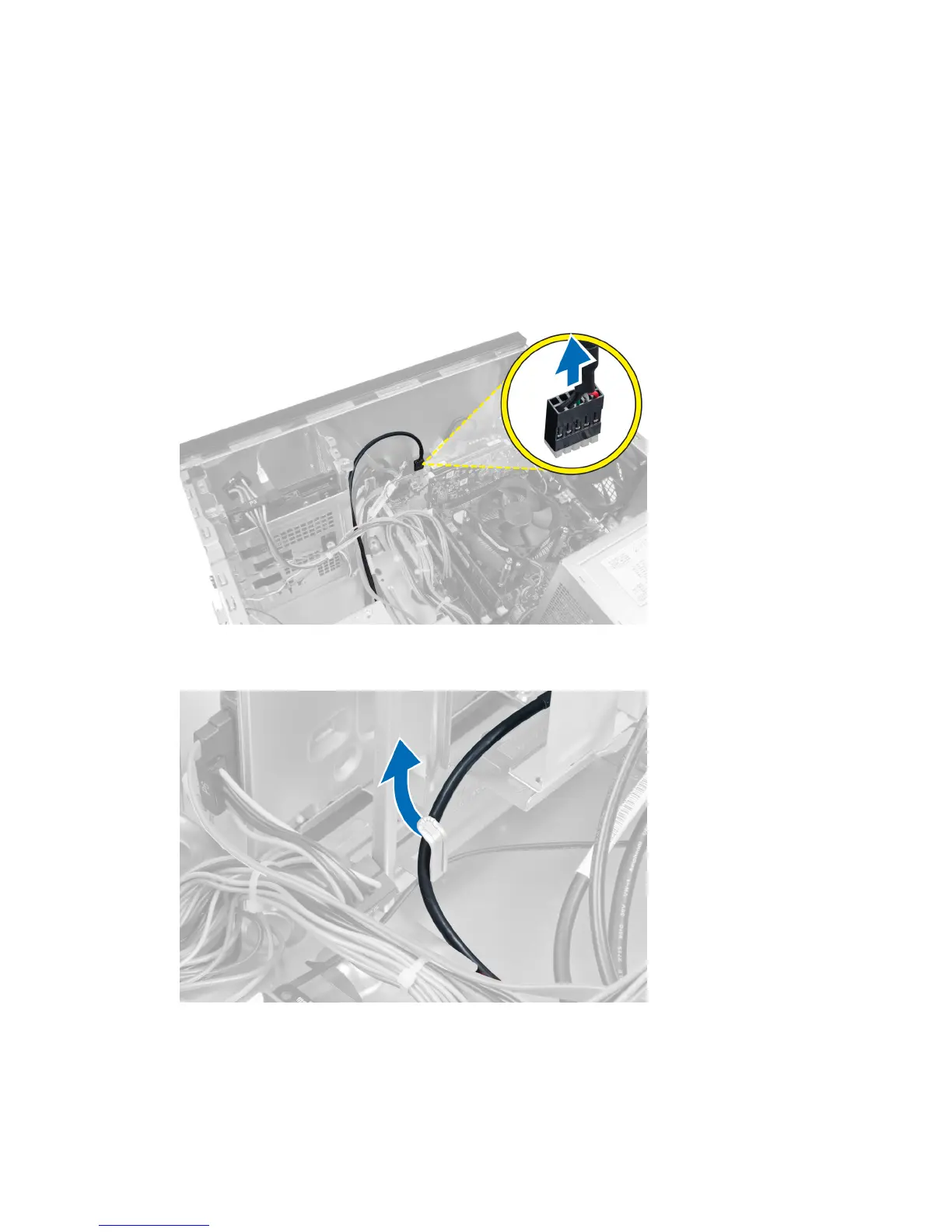

3. Disconnect the memory card cable from the system board.
Figure 15.
4. Unroute the memory card reader cable from the retention clip.
Figure 16.
5. Remove the screws that secure the memory card reader to the drive cage.
19
