Removing The Front Audio Module
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the cover.
3. Remove the front bezel.

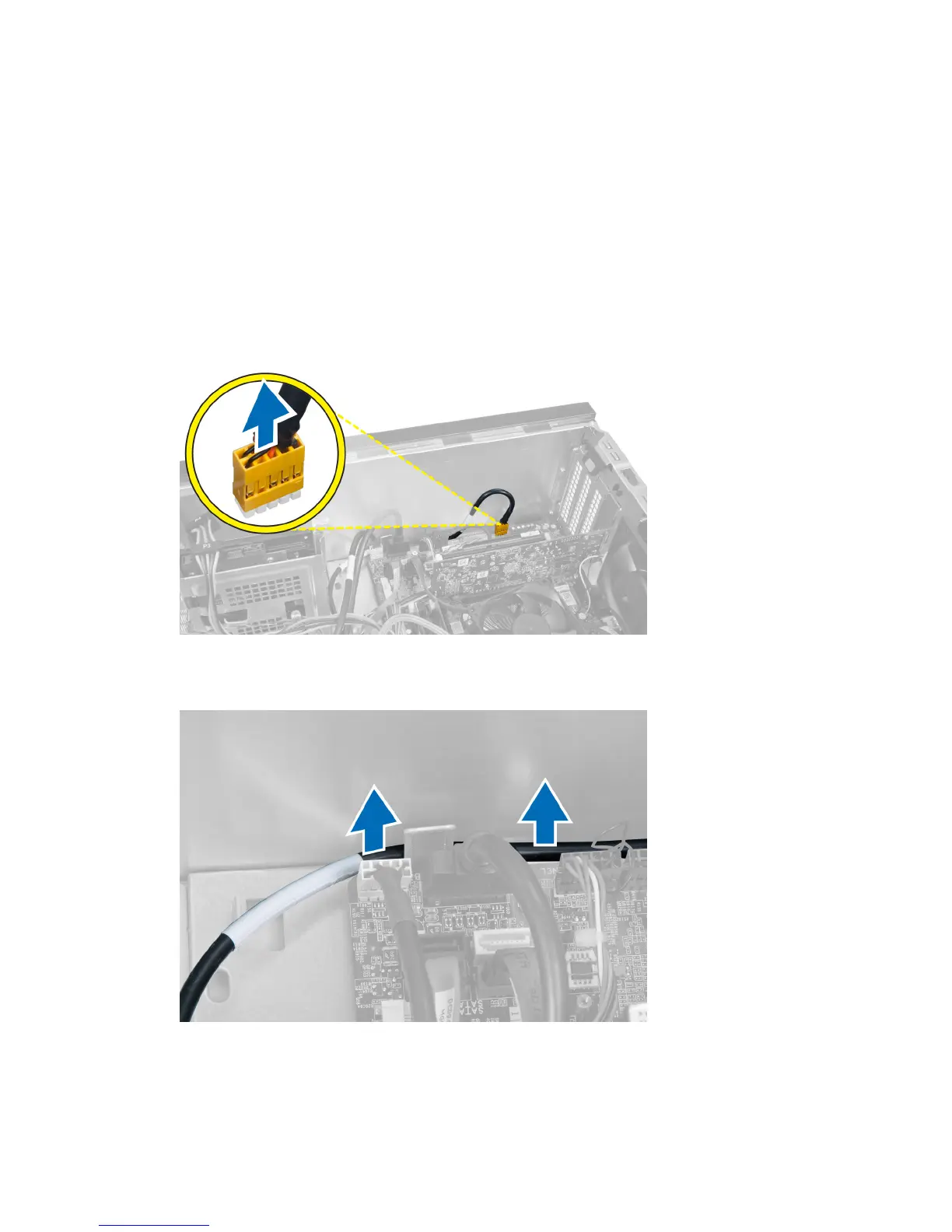

4. Disconnect the front audio module cable from the system board.
Figure 46.
5. Remove the front audio module routing cable through the routing clips on the chassis.
Figure 47.
