Dell Vostro 470 - Removing The Front USB Module; Installing The Front USB Module

18
Removing The Front USB Module
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the cover.
3. Remove the front bezel.

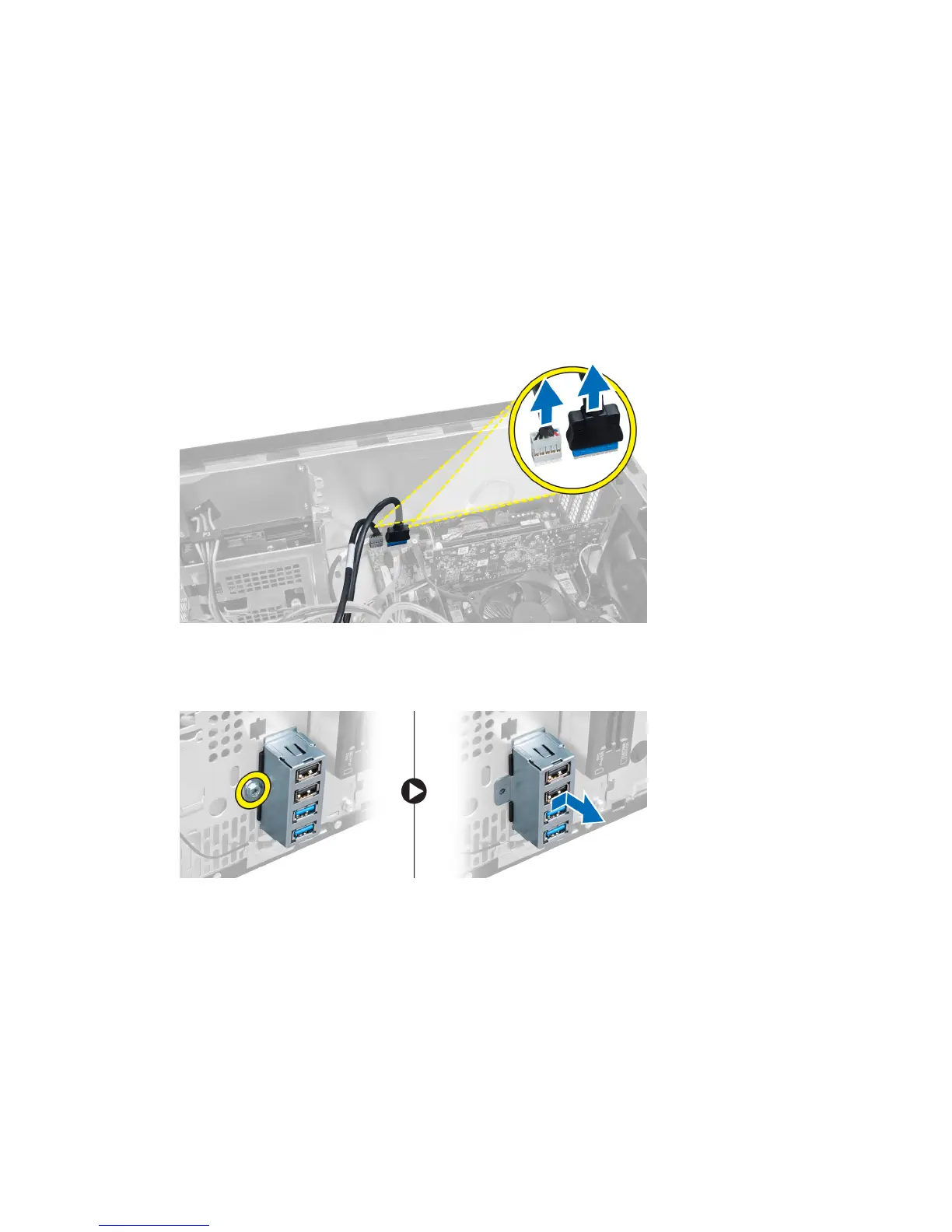

4. Disconnect the front USB module data cable and the power cable from the system board.
Figure 49.
5. Remove the screw that secures the front USB module to the front bezel and remove the front USB module from the
computer.
Figure 50.
Installing The Front USB Module
1. Place the front USB module on the front bezel and install the screw that secures the front USB module to the front
bezel.
2. Connect the front USB module cable to the system board.
3. Install the front bezel.
