Dell W12C - System-Board Components

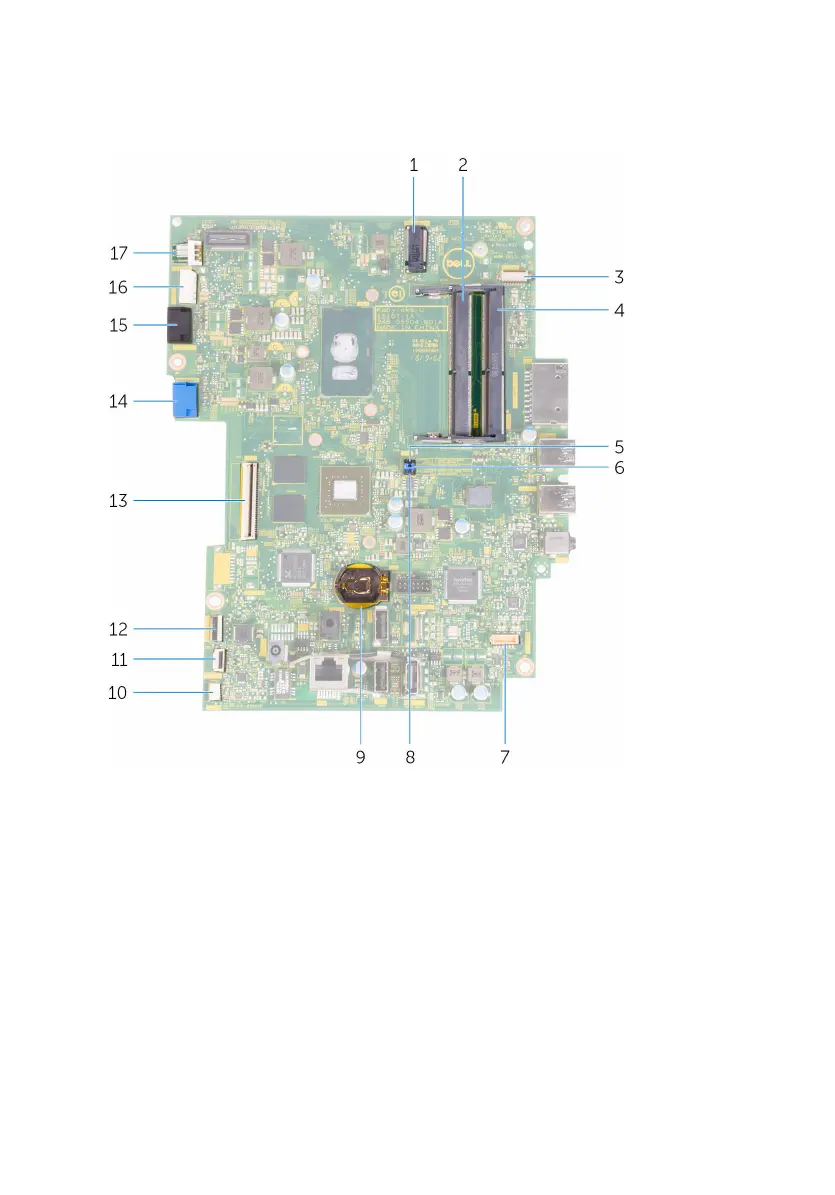

System-board components
1 wireless-card slot (NGFF_WI-FI) 2 memory-module slot (DIMM1)
3 camera-cable connector
(WEBCAM)
4 memory-module slot (DIMM2)
5 Service mode jumper 6 Password clear jumper
(PASSWORD)
7 speaker-cable connector
(SPEAKER)
8 CMOS clear jumper
(RTC_CMOS)
9 coin-cell battery 10 touch-screen board cable
connector (TOUCH)
11 control-buttons board cable
connector (PWRCN1)
12 display-panel power cable
connector (CONVERTER)
15
