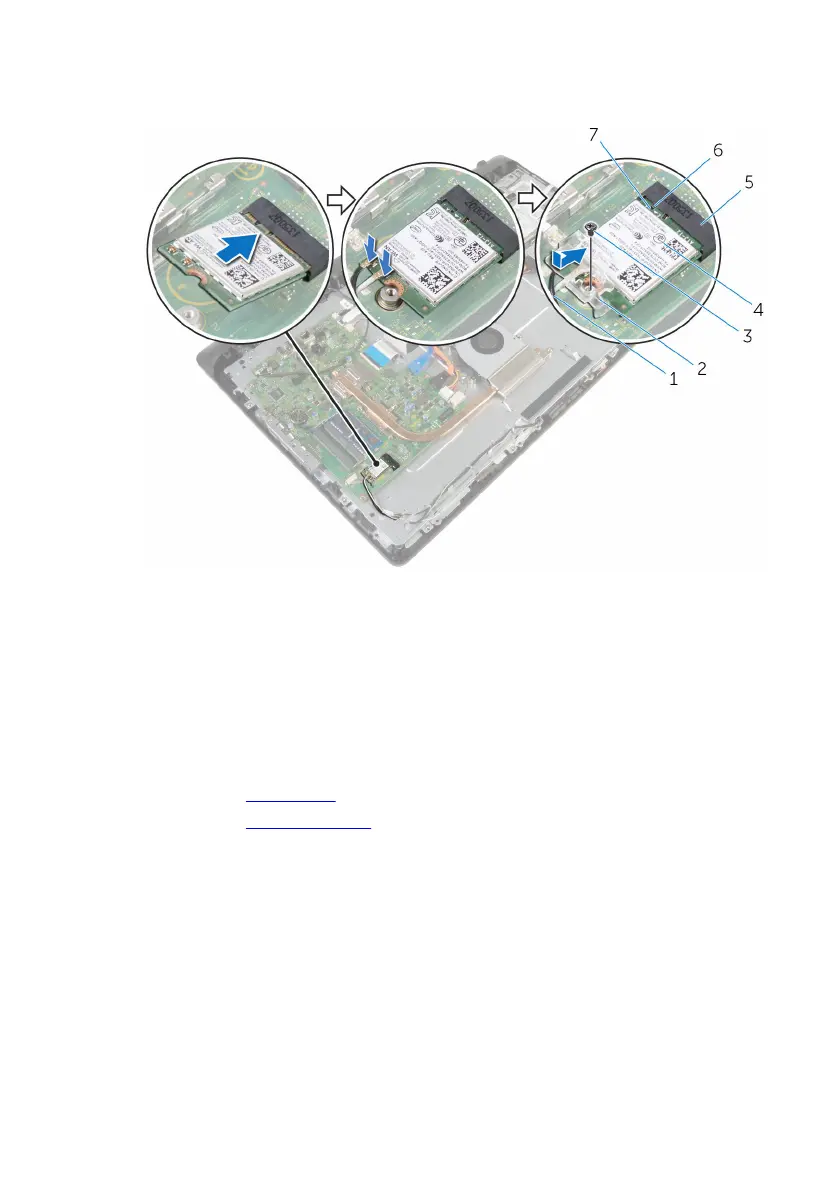

6 Replace the screw that secures the wireless-card bracket and the
wireless card to the system board.
1 antenna cables 2 wireless-card bracket
3 screw 4 wireless card
5 wireless-card slot 6 tab
7 notch
Post-requisites
1 Replace the back cover.
2 Replace the stand assembly.
