Dell W12C - Page 19

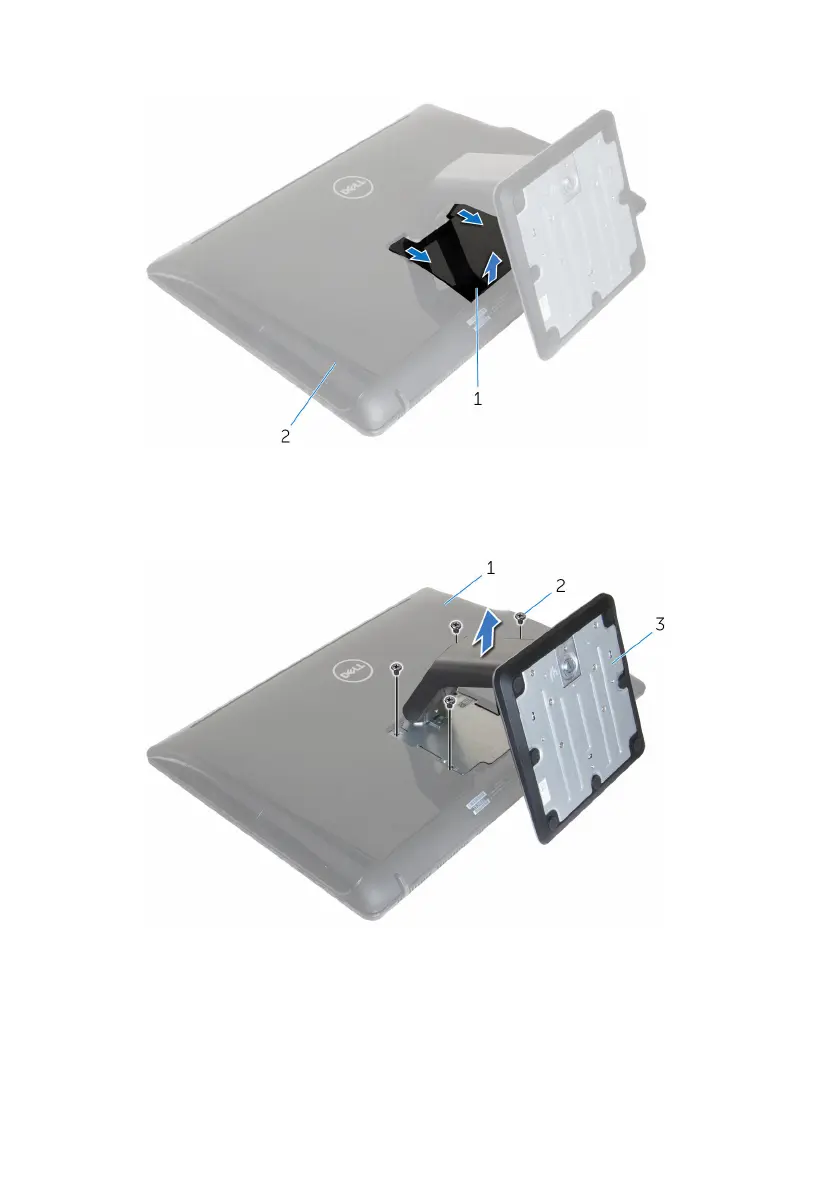

3 Slide and remove the stand cover away from the computer.
1 stand cover 2 back cover
4 Remove the screws that secure the stand to the display-panel base.
5 Lift the stand upward at an angle and slide it away from the computer.
1 back cover 2 screws (4)
3 stand
19
