Dell W12C - Page 31

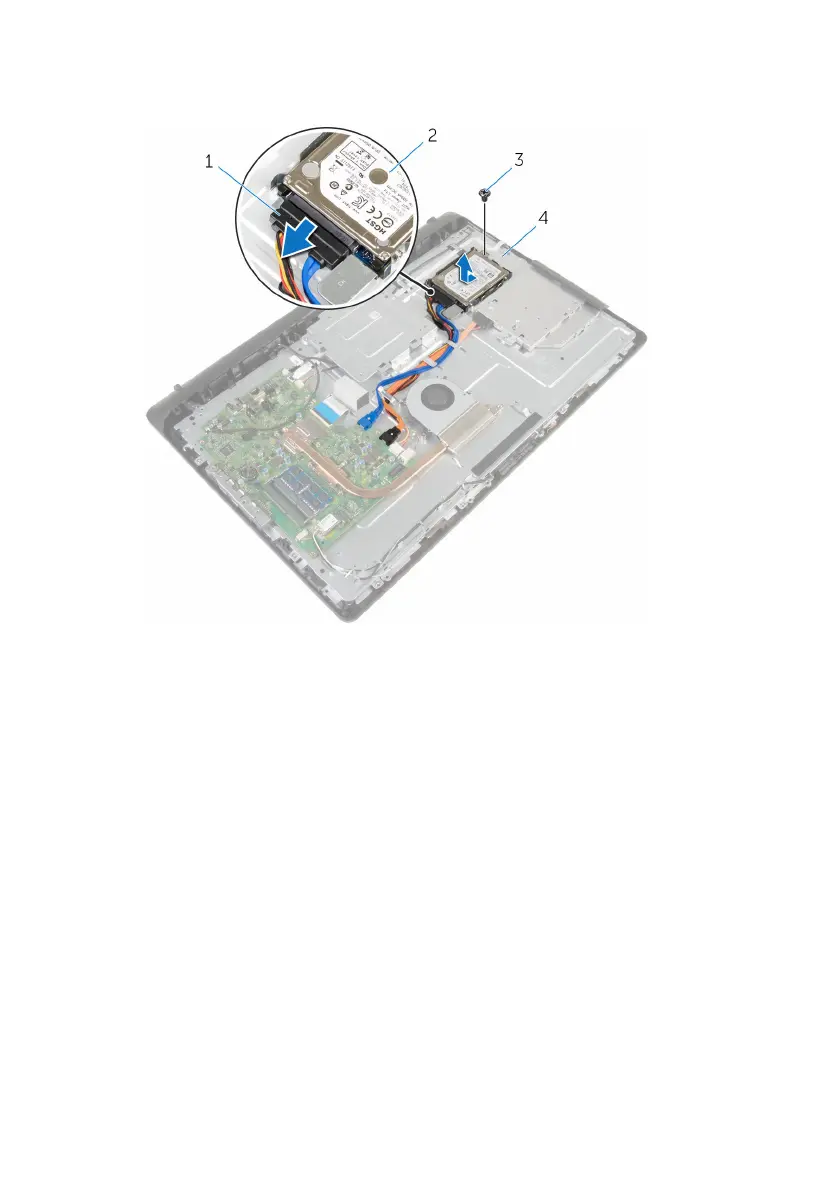

3 Using your fingertips, slide the hard-drive assembly out of the hard-drive
bay.
1 power and data cable 2 hard-drive assembly
3 screw 4 display-assembly base
4 Remove the screws that secure the hard-drive bracket to the hard drive.
31
