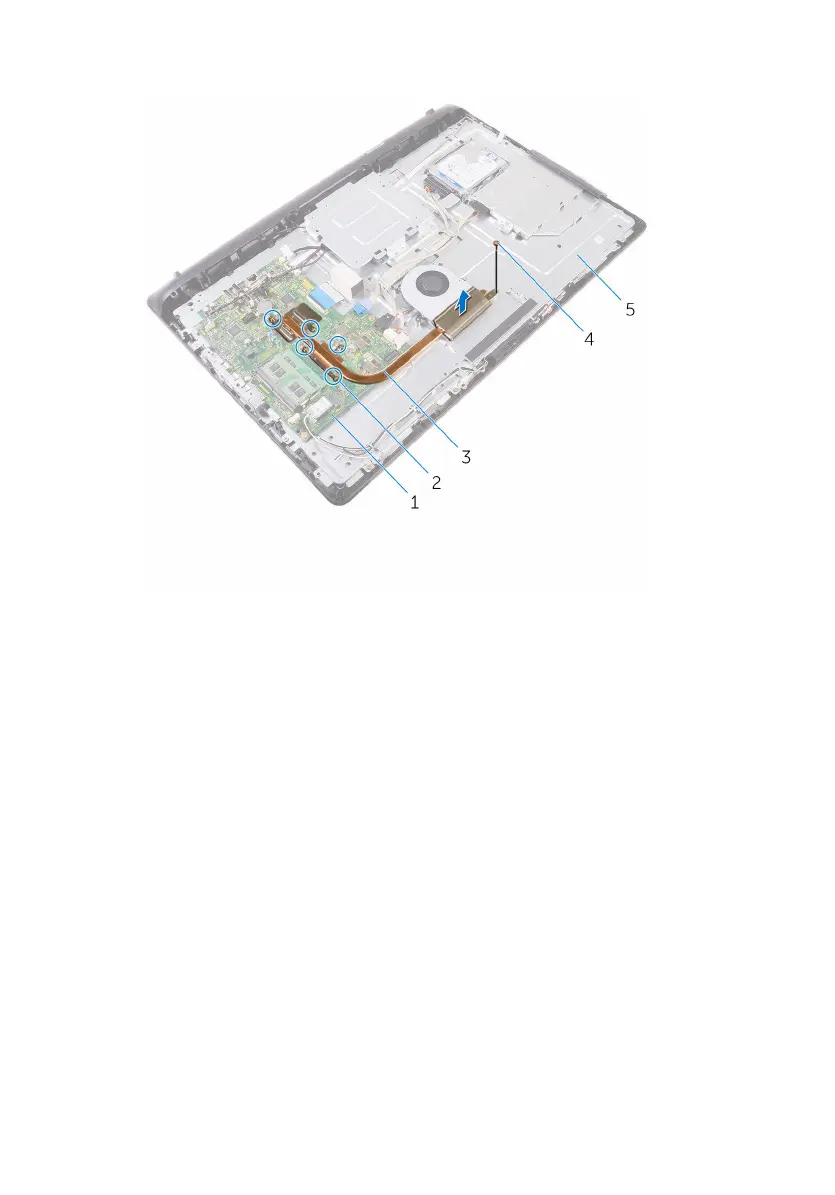

3 Lift the heat sink off the system board.
1 system board 2 captive screws (5)
3 heat sink 4 screw
5 display-assembly base
43
