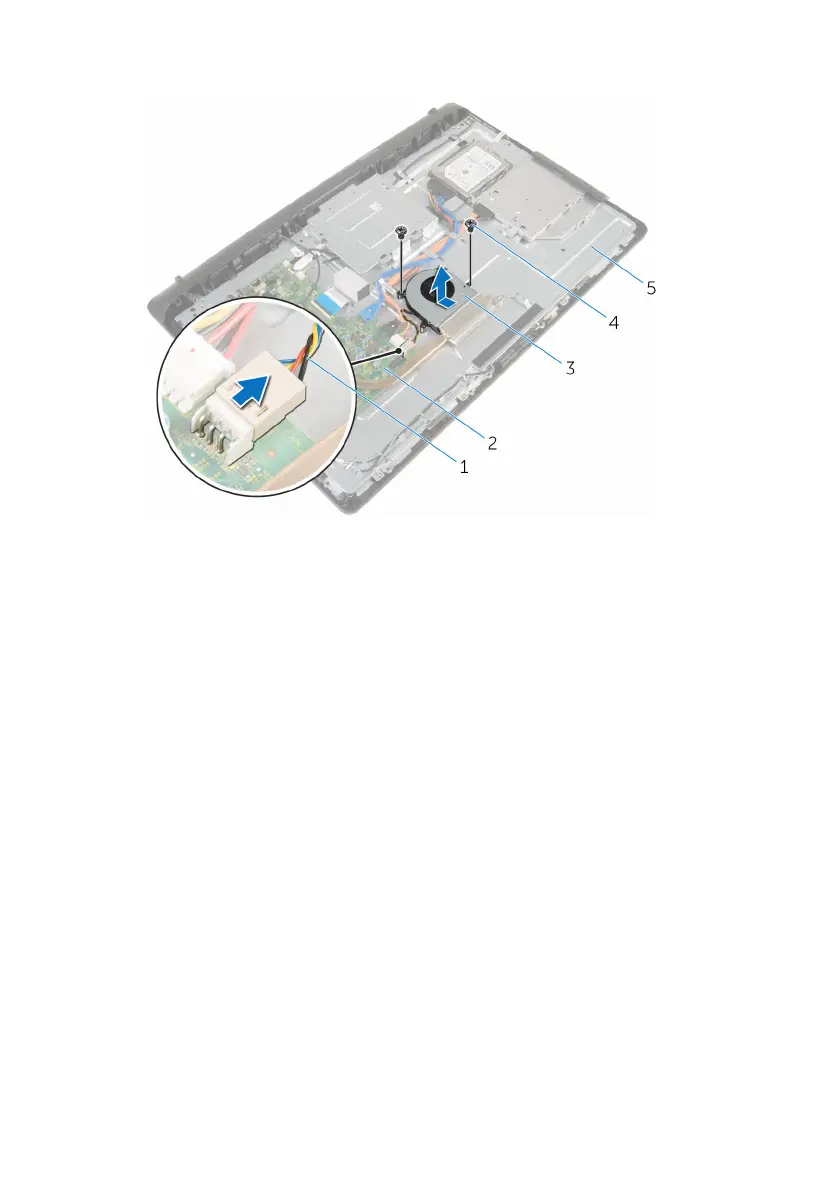

3 Lift the fan at an angle off the display-assembly base.
1 fan cable 2 system board
3 fan 4 screws (2)
5 display-assembly base
46
