Dell W7M79 - Installing the Hard Drive and Optical Drive Module

Installing the hard drive and optical drive module

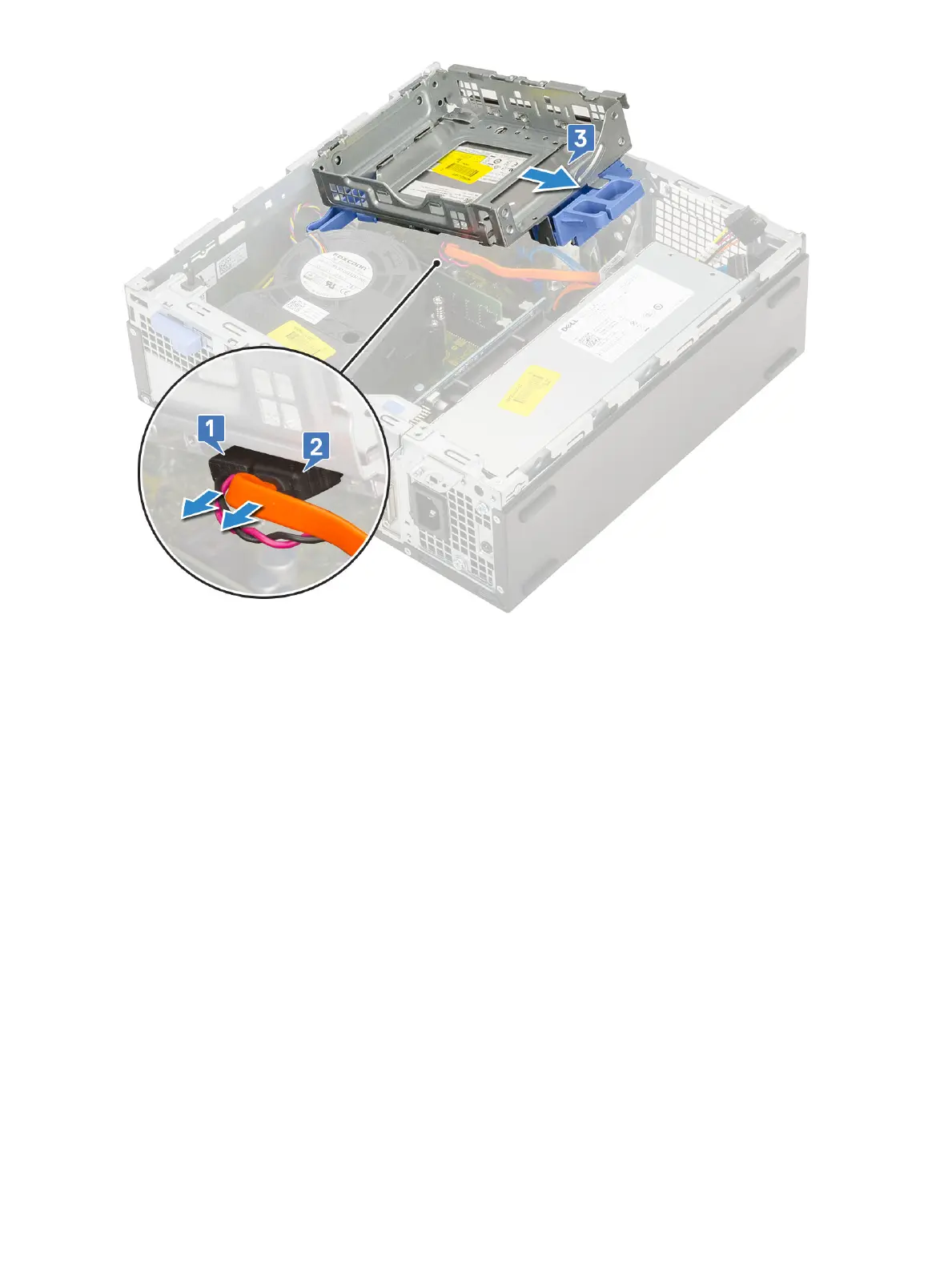

1 Insert the tabs on the hard drive and optical drive module into the slot on the system at 30 degree angle [1].
2 Connect the optical drive data cable and power cable to the connectors on the optical drive [2, 3].
Removing and installing components
37
