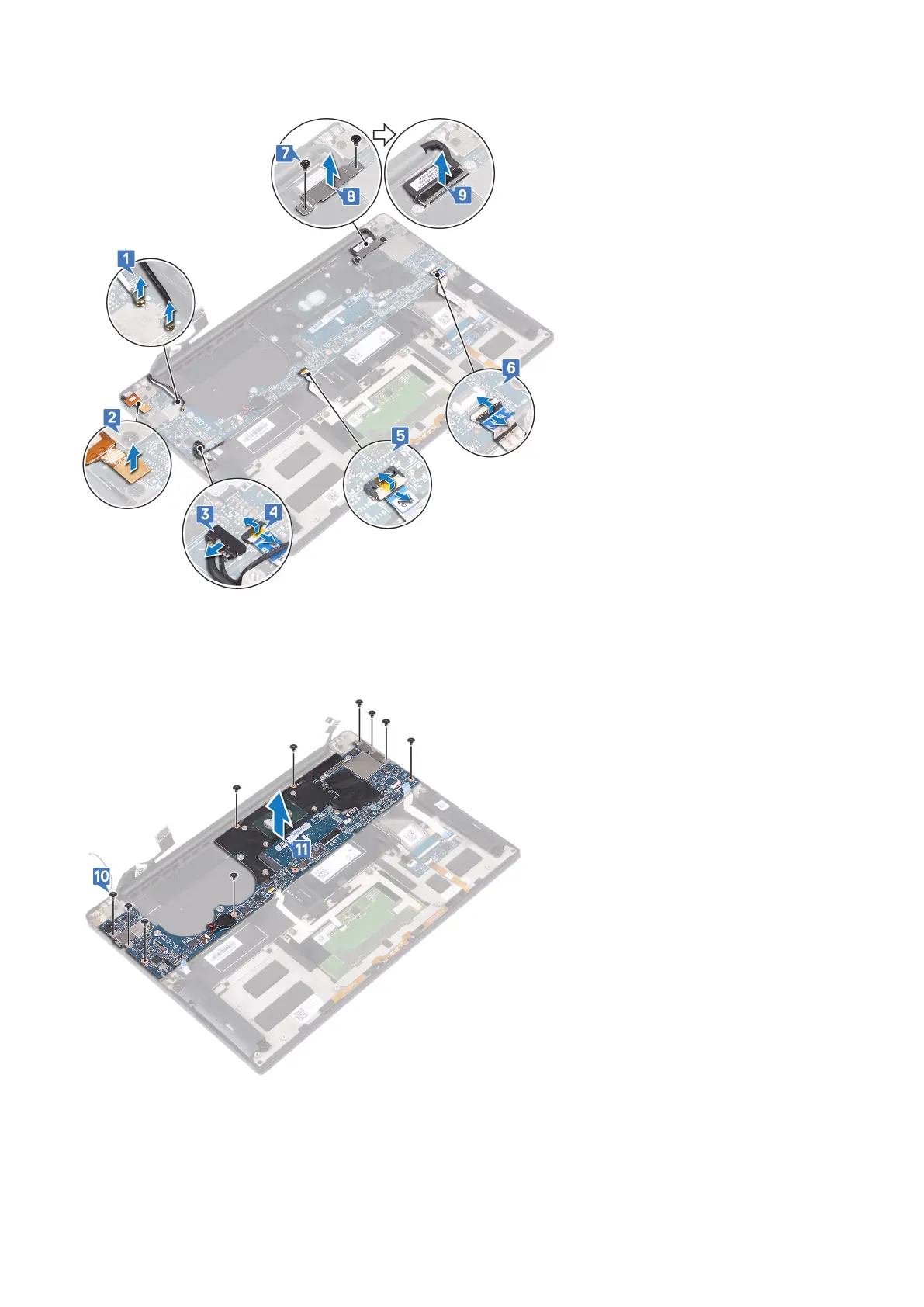

10. Remove the 10 screws (M1.6x2.5) securing the system board to the palm-rest assembly.

11. Lift the system board from the palm-rest assembly.

52

Removing the system board
