2 Remove the jumper plug from the password jumper-pins.

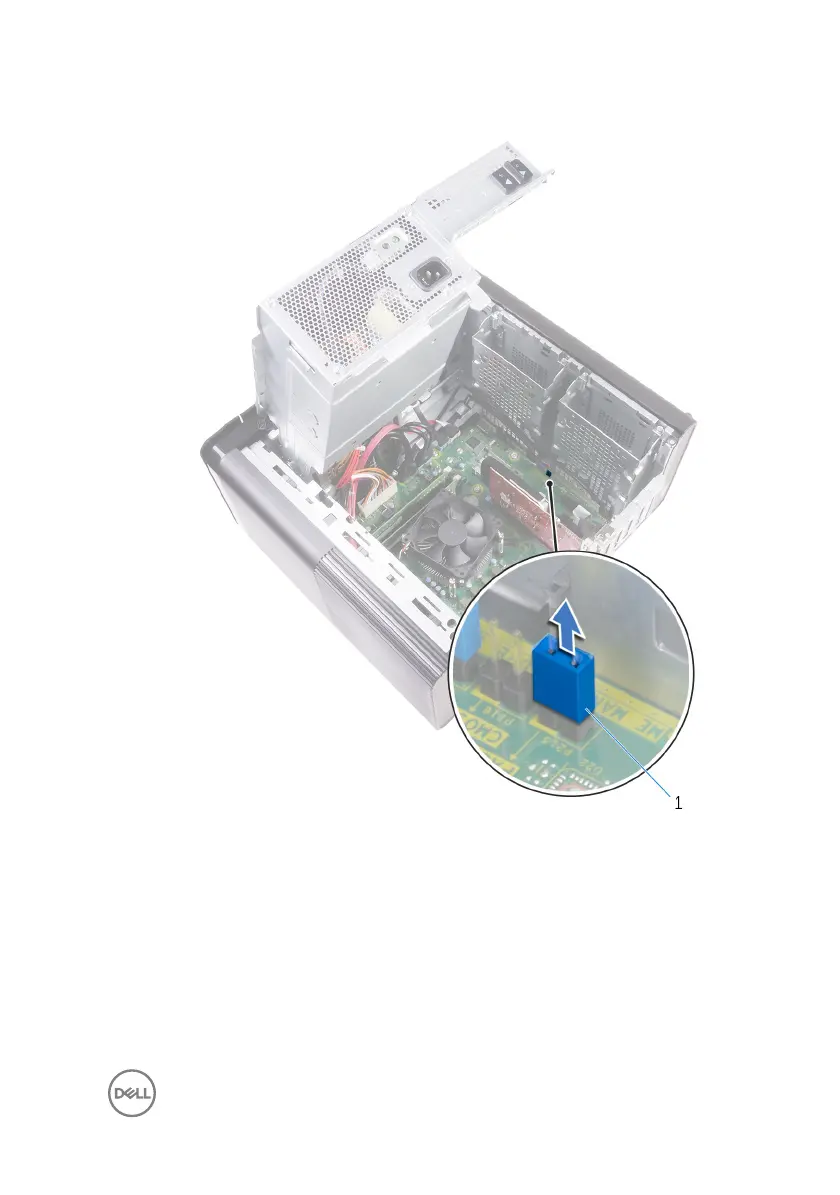

Figure 42. Removing the jumper plug

jumper plug

3 Power on without the jumper plug to clear the password.

123
