2 Lift the coin-cell battery out of its socket.

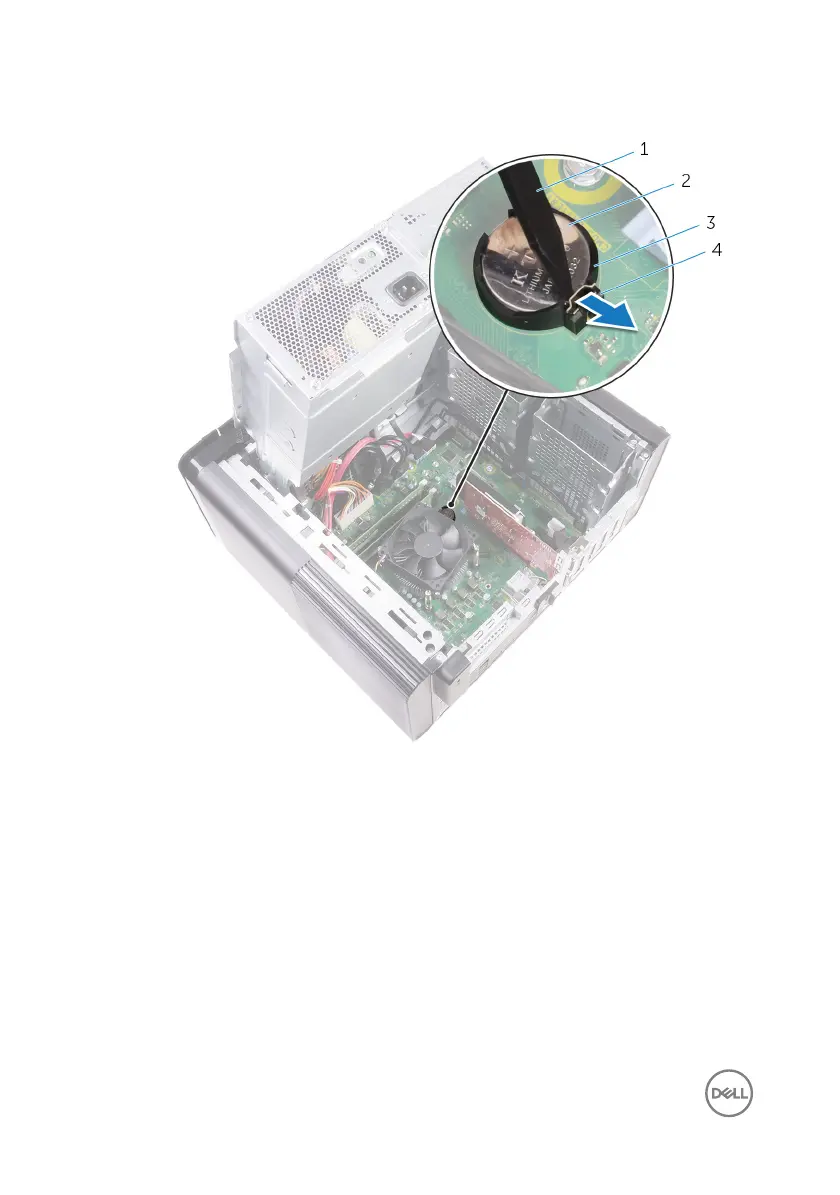

Figure 17. Removing the coin cell battery

plastic scribe 2 coin-cell battery

3 coin-cell battery socket 4 battery-release lever
