13
Installation on an Inline or
Center Line small square baler:
hFollow instructions for installation as above.
If placing the #1986 in the center channel you may need to
cut an opening from the outside to be able to tighten down
the nuts and secure the wire or use longer bolts and spacers.
Installation on a large or
mid-size square baler:
When installing the #1986 on a large square baler, use the
same guidelines as above. However, we recommend that you
add a 1/4" thick piece of strap iron in front of the sensor’s
beveled edge. This will provide additional protection to the
sensor plate.
Installation on a John Deere
Round Baler:
hLocate a spot on the right hand side of the bale chamber,
approximately 4.5" up from the bottom of the frame. The
back edge of the sensor pad should be vertical so that the
top rear corner of the sensor pad is approximately 3/8"
forward from the rear edge of the upright frame tube.
hFollow instructions for installation as above.
Make sure that the beveled edge of the sensor pad is fac-
ing the front of the baler.

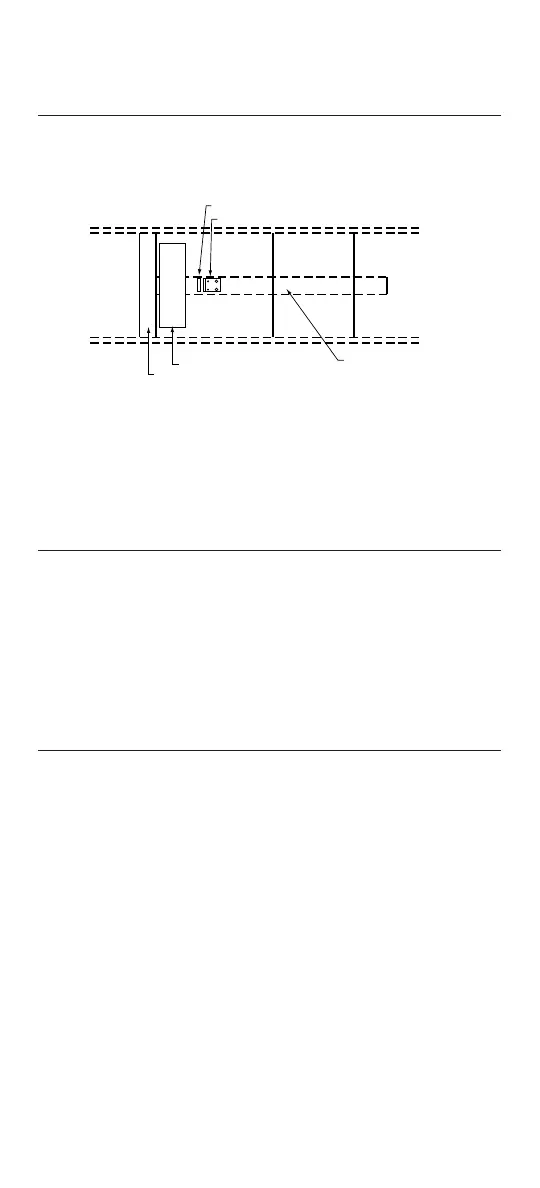

Top View of Inline or Centerline Small Square Baler
SENSOR PAD
DIVERTER
CENTER CHANNEL
AREA OF KNOTTERS
Front
of
Machine
PLUNGER POSITION (EXTENDED)
