V
Install sensor here

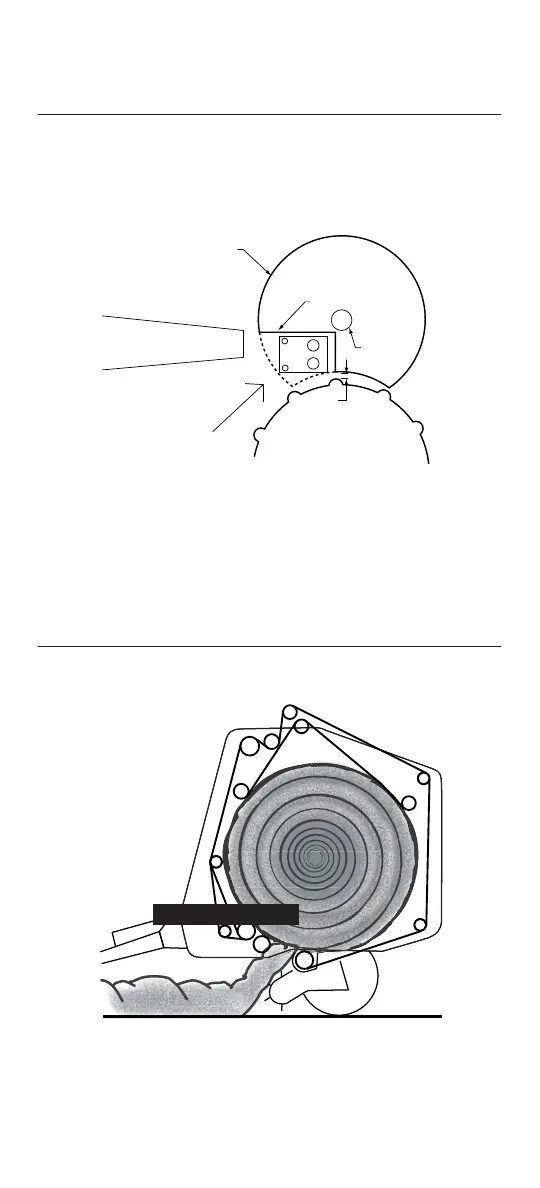

Installation on a New Holland
or Case RBX Round Baler:
hLocate a spot on either side of the bale chamber.
hYour baler may contain a circular crop diverter plate. If it
does, a notch must be cut out of the plate so that the sen-
sor can rest against the chamber wall.
hFollow instructions for installation as above.
Make sure that the beveled edge of the sensor pad is fac-
ing the front of the baler.
Installation on all other Round
Balers:
hLocate a spot on the side wall or tailgate, on either side of
the baler, as low as possible to the bottom.
hFollow instructions for installation as above.
Be sure the sensor plate lies flat, with the beveled edge
facing the pickup. The hay will begin to pass over the
sensor when the bale is formed to approximately ¼ of
full size.
CROP DIVERTER PLATE
(SOME MODELS MAY NOT HAVE)
MUST MAKE CUTS
FLOW FROM
PICK-UP
CARRIAGE BOLTCARRIAGE BOLTCARRIAGE BOLT
0.5 INCH
14
