6
REPAIRS

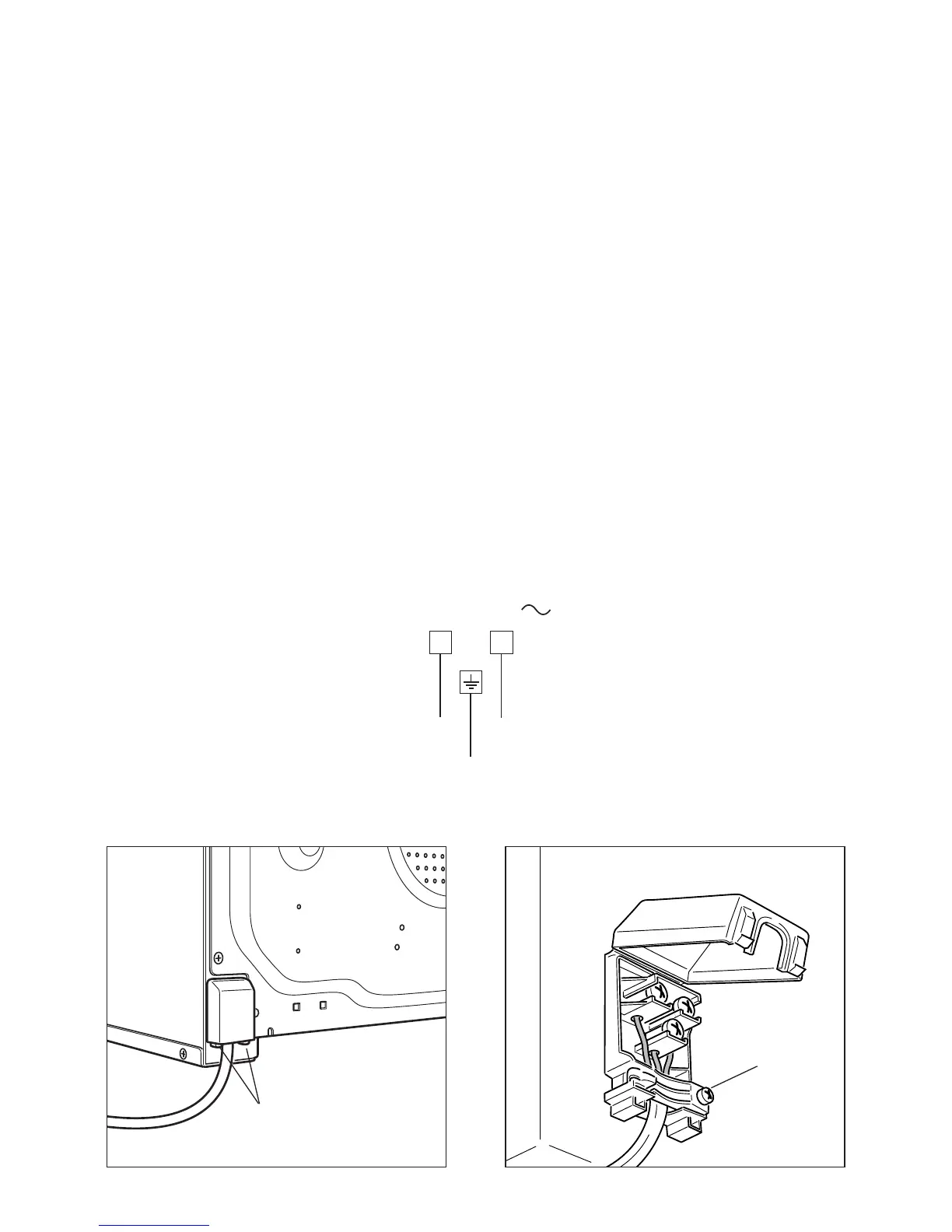

REPLACING THE POWER SUPPLY CABLE
■ Unhook the terminal board cover by inserting a screwdriver into the two
hooks A (fig. 2).
■ Open the cable gland by unscrewing screw F (fig. 3), unscrew the terminal
screws and remove the cable.
■ The new supply cable, of suitable type and section, is connected to the
terminal board following the diagram of fig. 1.
FEEDER CABLE SECTION TYPE HO5RR-F
230 V ~ 3050 W (13.26 A) 3 x 1,5 mm
2
240 V ~ 3320 W (13.83 A) 3 x 1,5 mm
2
A
F
220 - 240 V
E
N
L
1 (L ) 2
Figure 2 Figure 3
Figure 1
