DeLonghi DE 91 MPS - Page 7

7

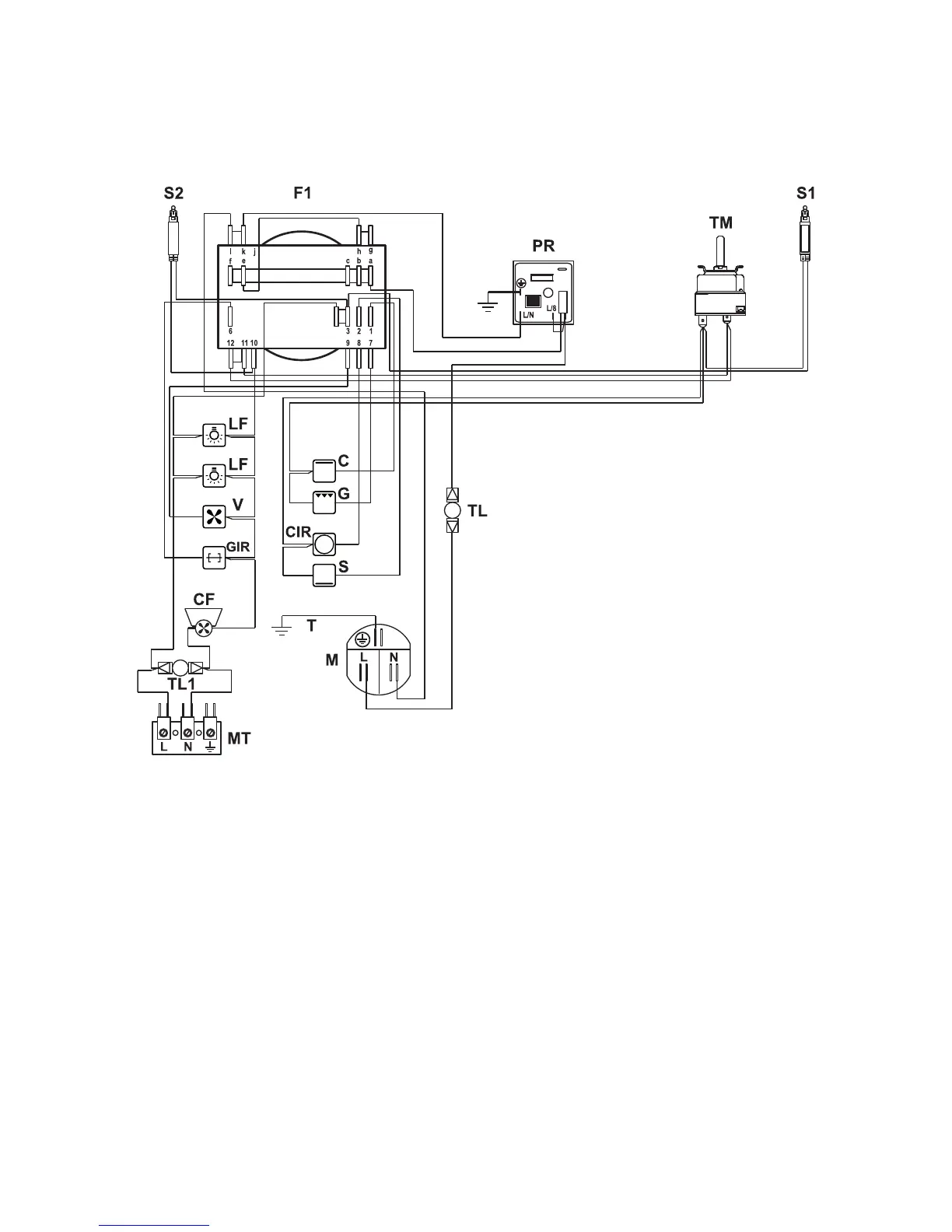

ELECTRIC DIAGRAM
Figure 4
F1 Oven switch
TM Oven thermostat
TL Thermal overload (N.C.)
TL1 Thermal overload (N.O.)
PR Electronic programmer
LF Oven lamps
S1 Thermostat pilot lamp
S2 Line pilot lamp
C Top element
G Grill element
S Bottom element
CIR Circular element
V Fan motor
CF Cooling fan motor
GIR Rotisserie
M Terminal block
MT Testing block
T Earth connection
