CLEANING THE PANES OF GLASS
The oven door is tted with no. 2 panes:
■ no. 1 outside;
■ no. 1 inner.
To clean the panes on both sides it is ne-
cessary to remove the inner pane as fol-
lows.
REMOVING THE INNER PANE OF
GLASS
1. Lock the door open:
■ Open the door to the full extent (g.
25a).
■ Open the lever “A” completely on the
left and right hinges (g. 25b).
■ Hold the door as shown in g. 24.
■ Gently close the door until left and right
hinge levers “A” are hooked to part “B”
of the door (gs. 25b, 25c).

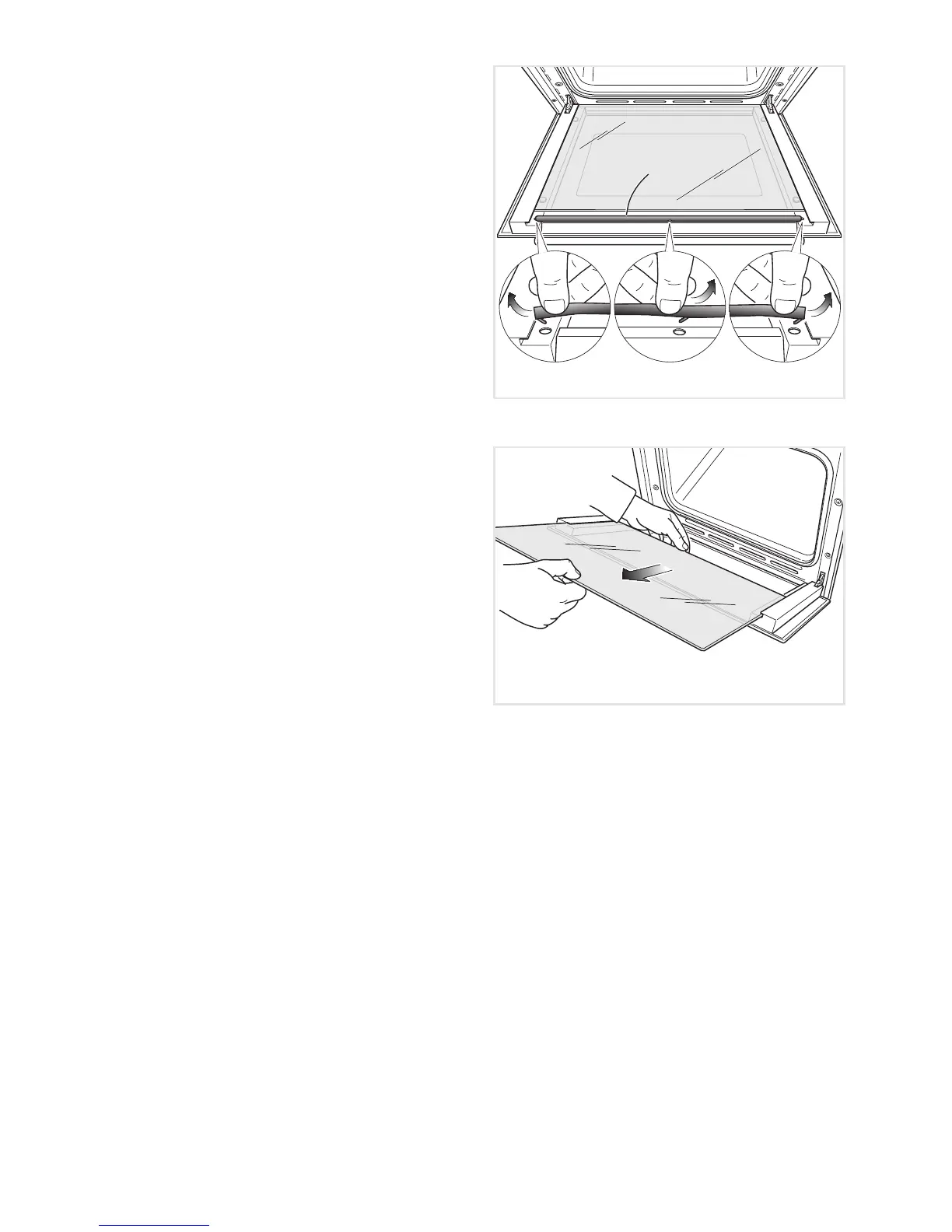

2. Remove the inner pane:
■ Remove the seal “G” by unhooking the
no. 3 xing hooks (g. 26a).
■ Gently pull out the inner pane of glass
(Fig. 26b).
■ Clean the glass with an appropriate
cleaner. Dry thoroughly, and place on
a soft surface.
Now you can also clean the inside of the
outer glass.
Figure 26a
Figure 26b
