Figure 24
Figure 25
Figure 26
G
CLEANING THE INNER PANES OF
GLASS
The oven door is tted with no. 3 panes:
■ no. 1 outside;
■ no. 1 inner;
■ no. 1 in the middle.
To clean all panes on both sides it is ne-
cessary to remove the inner and the middle
panes as follows:
REMOVING THE MIDDLE AND
INNER PANES OF GLASS

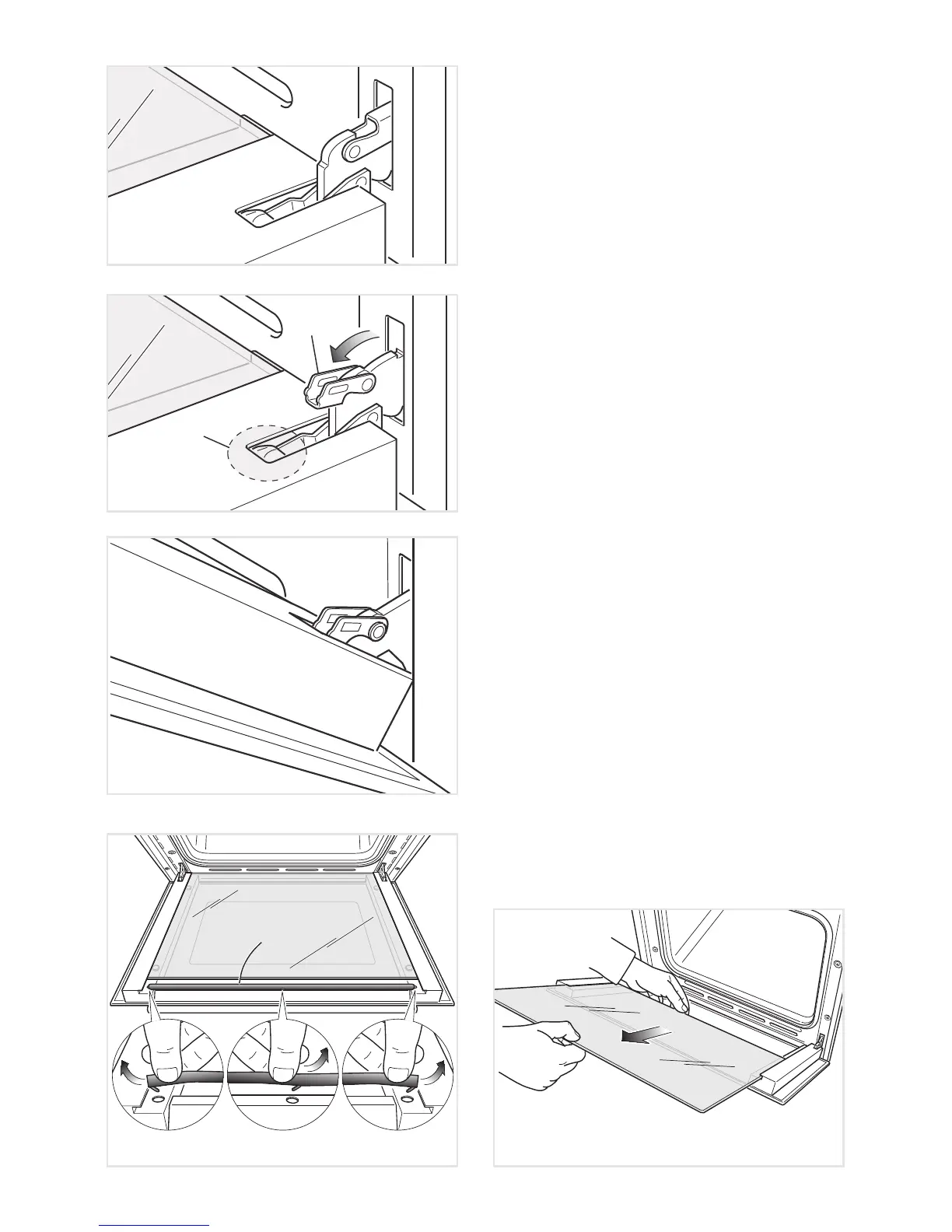

1. Lock the door open:
■ Fully open the oven door (g. 24).
■ Fully open the lever “A” on the left and
right hinges. (g. 25).
■ Gently close the door until left and
right hinge levers “A” are hooked to
part “B” of the door (gs. 25, 26).
2. Remove the inner pane:
■ Remove the seal “G” by unhooking the
no. 3 xing hooks (g. 27).
■ Gently pull out the inner pane of glass
(Fig. 28).
■ Clean the glass with an appropriate
cleaner. Dry thoroughly, and place on
a soft surface.
Figure 27 Figure 28
