33

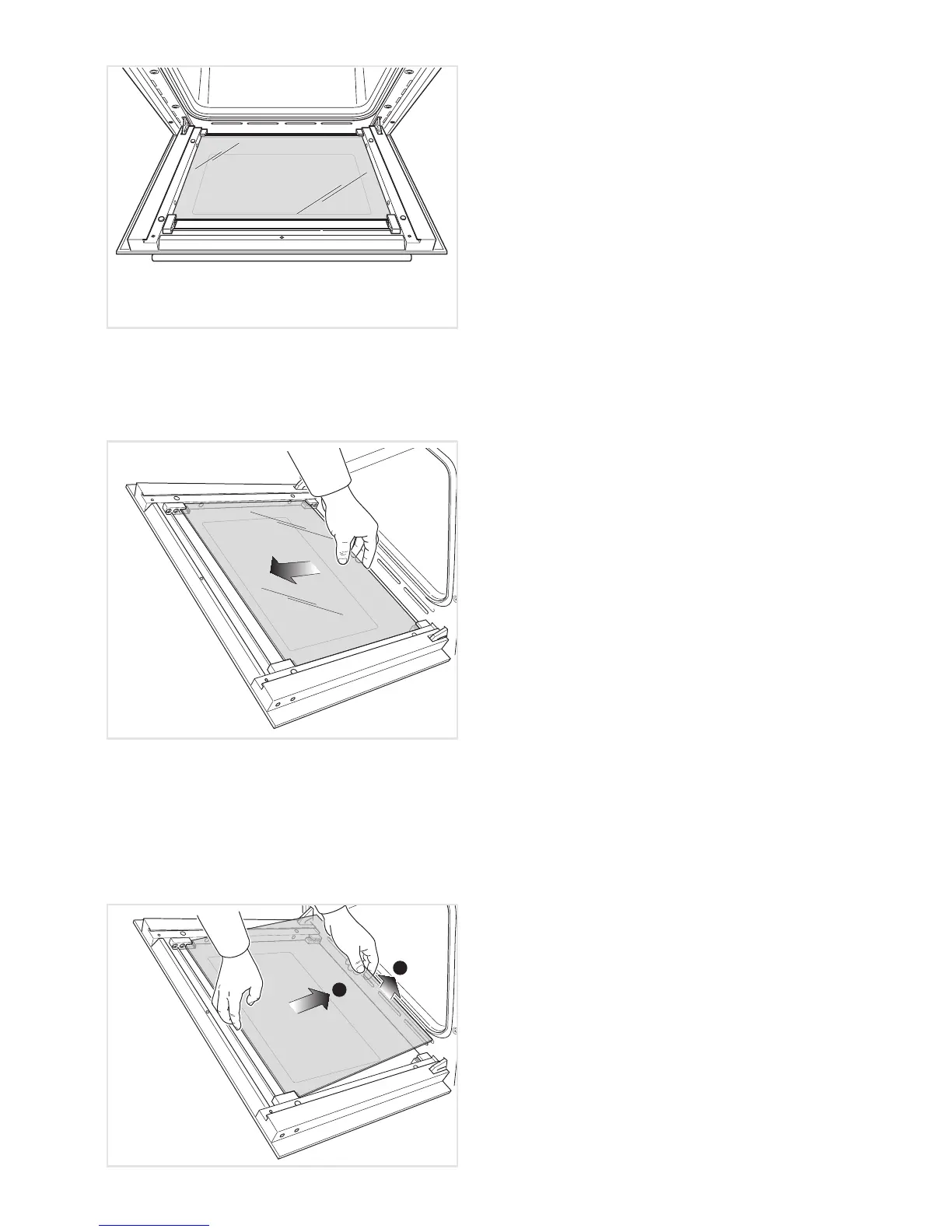

3. Remove the middle pane:
■ Gently unlock the middle pane of glass
from the bottom clamps by moving it
as in g. 30.
■ Gently lift the bottom edge of the pane
(arrow 1 in g. 31) and remove it by
pulling it out from the top clamps (ar-
row 2 in g. 31).
■ Clean the glass with an appropriate
cleaner. Dry thoroughly, and place on
a soft surface.
Now you can also clean the inside of the
outer glass.
1
2
Figure 29
Figure 30
Figure 31
