REPLACING THE MIDDLE AND INNER
PANES OF GLASS
1. Make sure the door is locked open
(see g. 26).
2. Replace the middle pane:

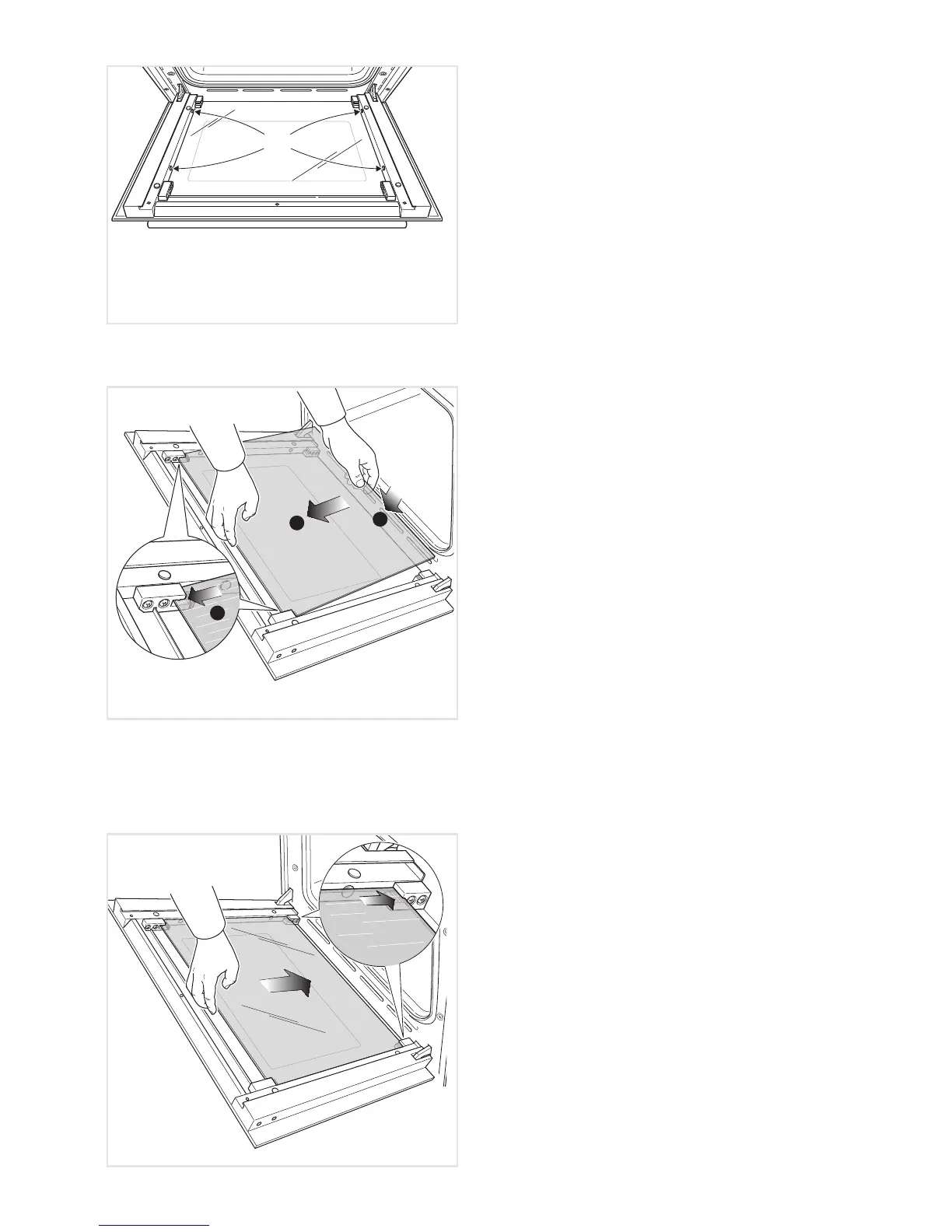

■ Check that the four rubber pads are in
place (“M” in g. 32).
■ Check that you are holding the pane
the correct way. You should be able to
read the wording on it as it faces you.
■ Gently insert the top edge of the pane
into the top clamps (arrow 1 in g. 33),
then lower the pane and insert the
bottom edge into the bottom clamps
(arrow 2 in g. 33); and then slide the
pane into position (g. 34).
Figure 34
Figure 33
Figure 32
