DeLonghi DE608M - Page 35

35
The oven door
has a sealed
gasket in the
top part.
It is normal the opened gap between
the top edge of the inner glass and the
sealed gasket. This allows the cooling
air circulation.

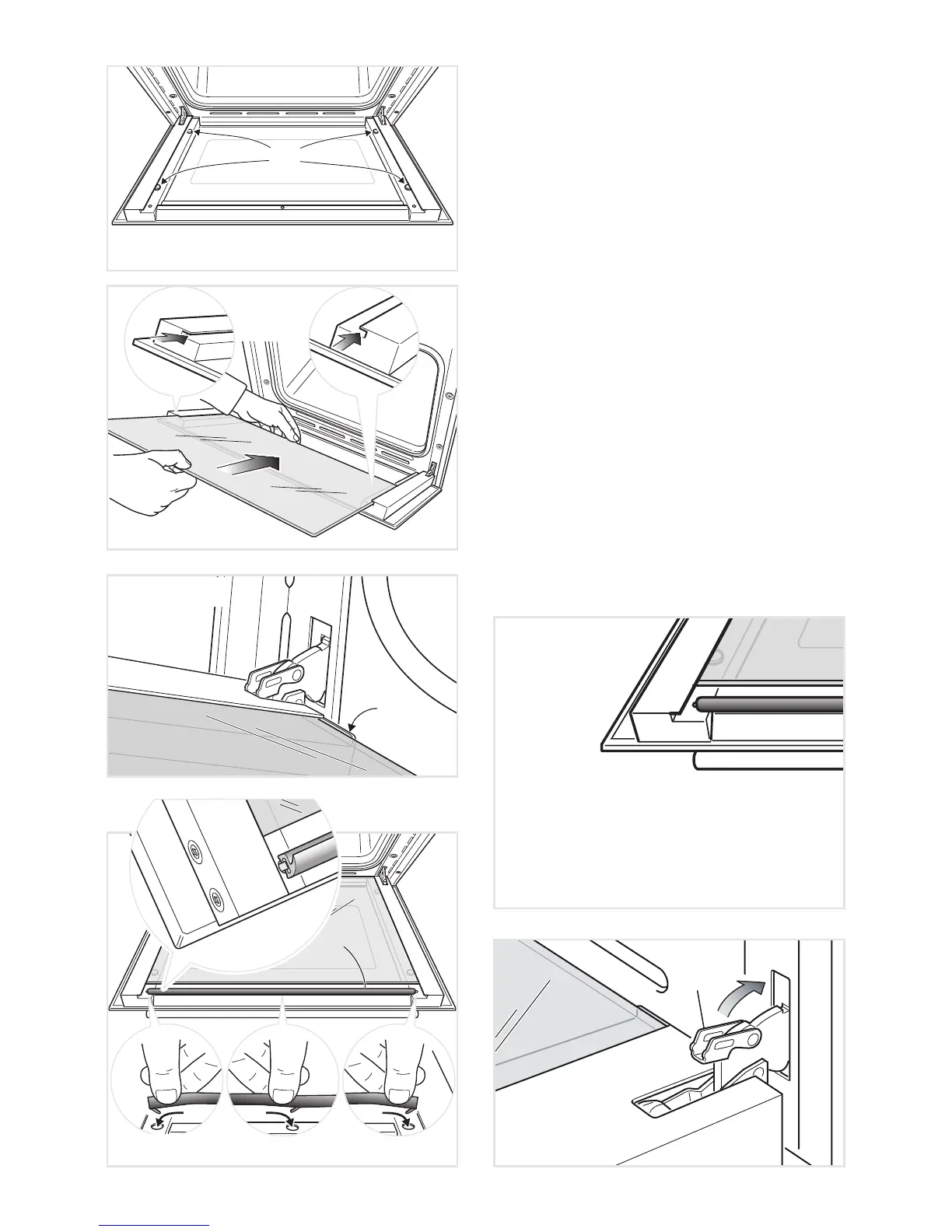

3. Replace the inner pane:
■ Check that the four rubber pads are in
place (“D” in Fig. 35).
■ Check that you are holding the pane
the correct way. You should be able to
read the wording on it as it faces you.
■ Insert the pane in the left “E” and right
“F” slide guides (g. 36), and gently
slide it to the retainers “H” (g. 37).
■ Reassemble the seal “G” in the correct
way by hooking the no. 3 xing hooks
in the proper holes (g. 38).
4. Unlock the oven door by opening it
completely and closing the lever “A”
on the left and right hinges (Fig. 39).
G
H
D
E
F
F
E
A
Figure 35
Figure 36
Figure 37
Figure 38 Figure 39
