33
REMOVING THE INNER PANE OF GLASS
The oven door is tted with no. 2 panes:
■ no. 1 outside;
■ no. 1 inner.
To clean all panes on both sides it is necessary to remove the inner pane as follows:

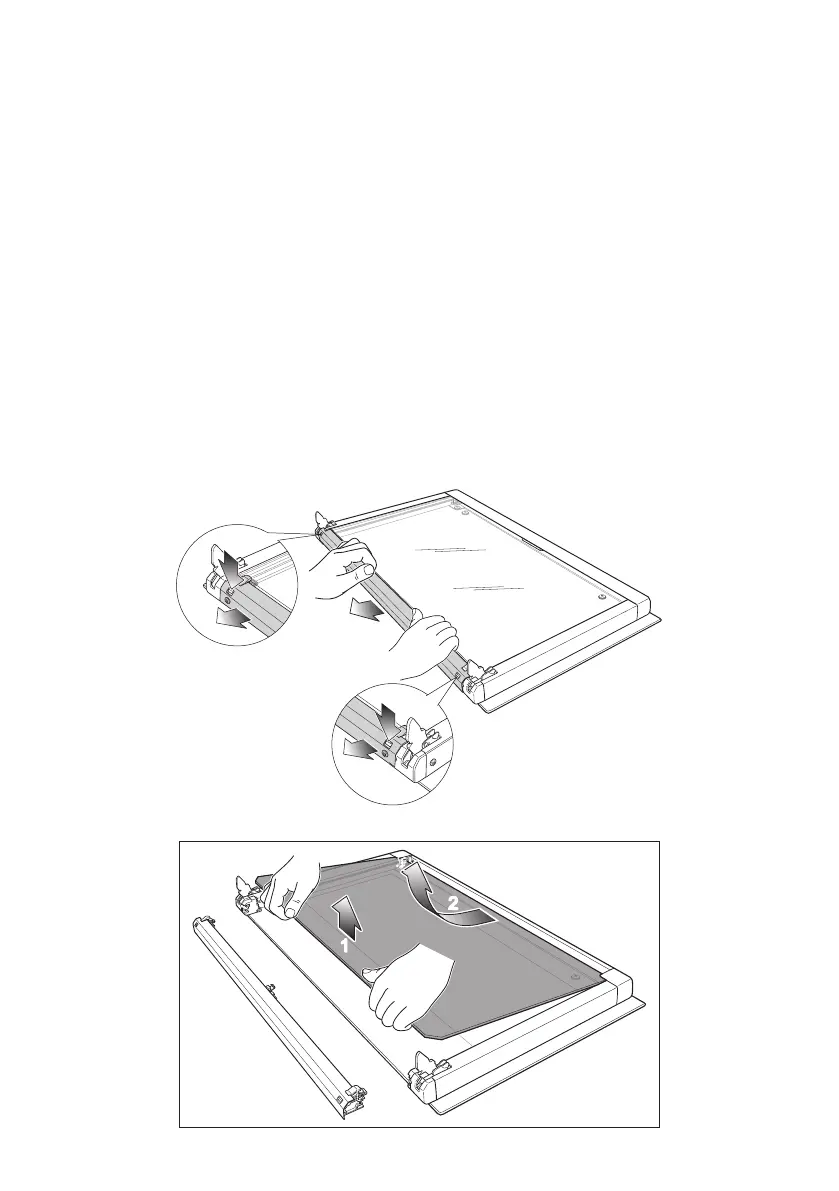

REMOVE THE INNER GLASS RETAINER
1. Remove the oven door and place it on a soft surface.
IMPORTANT: The door shall be placed horizontally as per gure 31.
2. Press down on both tabs to release the glass retainer.
3. Remove the glass retainer.
REMOVE THE INNER GLASS PANE
Lift and remove the inner pane slightly, as shown in the gure 32.
1
2
1
2
Figure 31
Figure 32
2
