FIXING THE OVEN
Introduce the oven into the furniture opening and x it with 4 screws (not supplied) as
gure 3b. It is essential that the oven rests on a surface which will support its weight, as the
screw xing is only complementary.
Note
It is essential that when installing your oven adequate air circulation is allowed for within
the installation. See gures 1 - 2.
Inadequate air circulation may greatly impair the performance of your oven and may effect
adjacent cabinets due to an increase in temperature.
Caution: Do not lift this oven by the door handle.
Adjust the hinges of furniture doors adjacent to the oven to allow a 4-5 mm gap between
the furniture door and the oven frame.

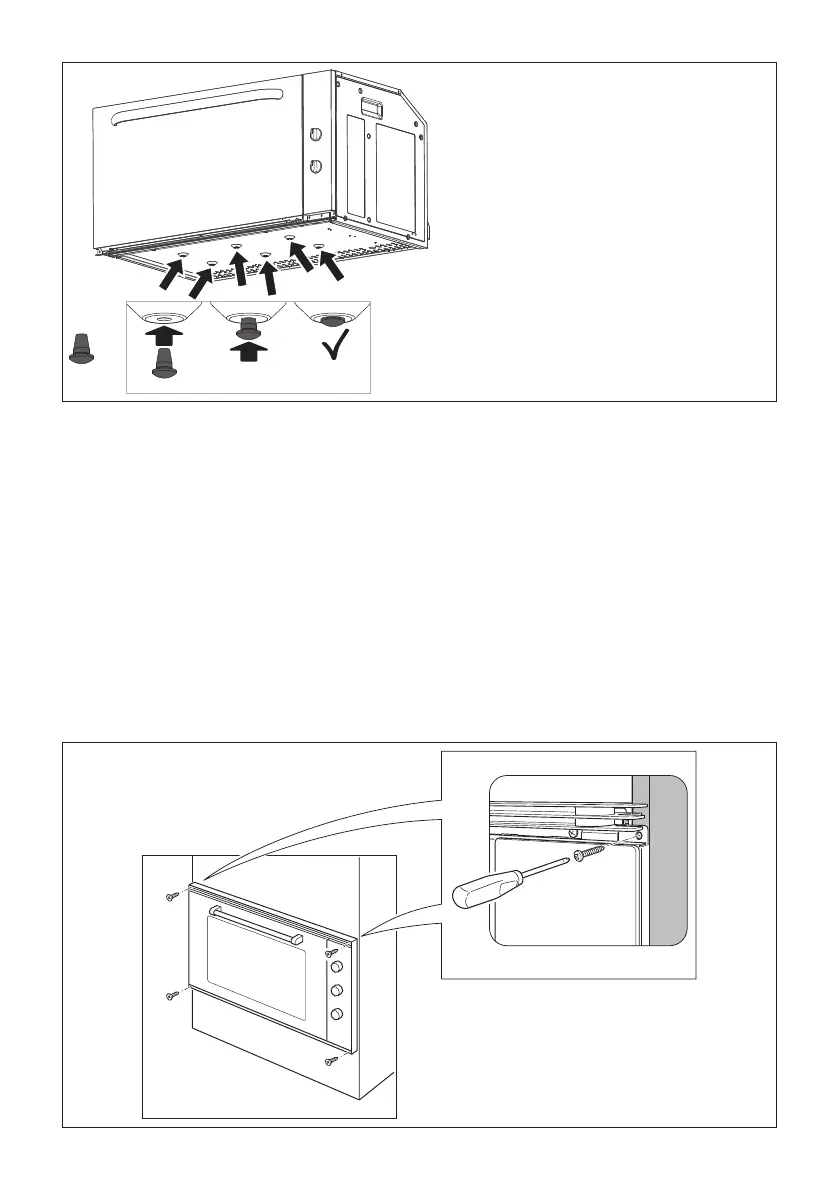

Figure 3b
Figure 3a
Fixing the rubber spacers to the
base of the oven (if they are missing)
by using the ones contained in
the separate kit supplied with this
appliance.
