DeLonghi DE908M - Replacing the Power Supply Cable

11
REPLACING THE POWER SUPPLY CABLE
Important! This appliance must be connected to the electricity supply only by an
authorised person.
To connect the supply cable:
■ Unhook the terminal board cover by inserting a screwdriver into the two hooks “A” (g. 5).
■ Open the cable gland by unscrewing screw “F” (g. 6), unscrew the terminal screws
and remove the cable.
■ The new supply cable, of suitable type and section, is connected to the terminal board
following the diagram g. 7.
■ Close and hook again the terminal board cover.
N.B. The earth conductor must be left about 3 cm longer than the others.
VOLTAGE AND POWER CONSUMPTION
220-240 V ac 3050 W (13.26 A)
FEEDER CABLE SECTION
TYPE H05RR-F
3 x 1,5 mm
2
(*) (**)
(*) Connection possible with plug and outlet
(**) Connection with wall box connection.
F
A
E
N (L
2)
L
1

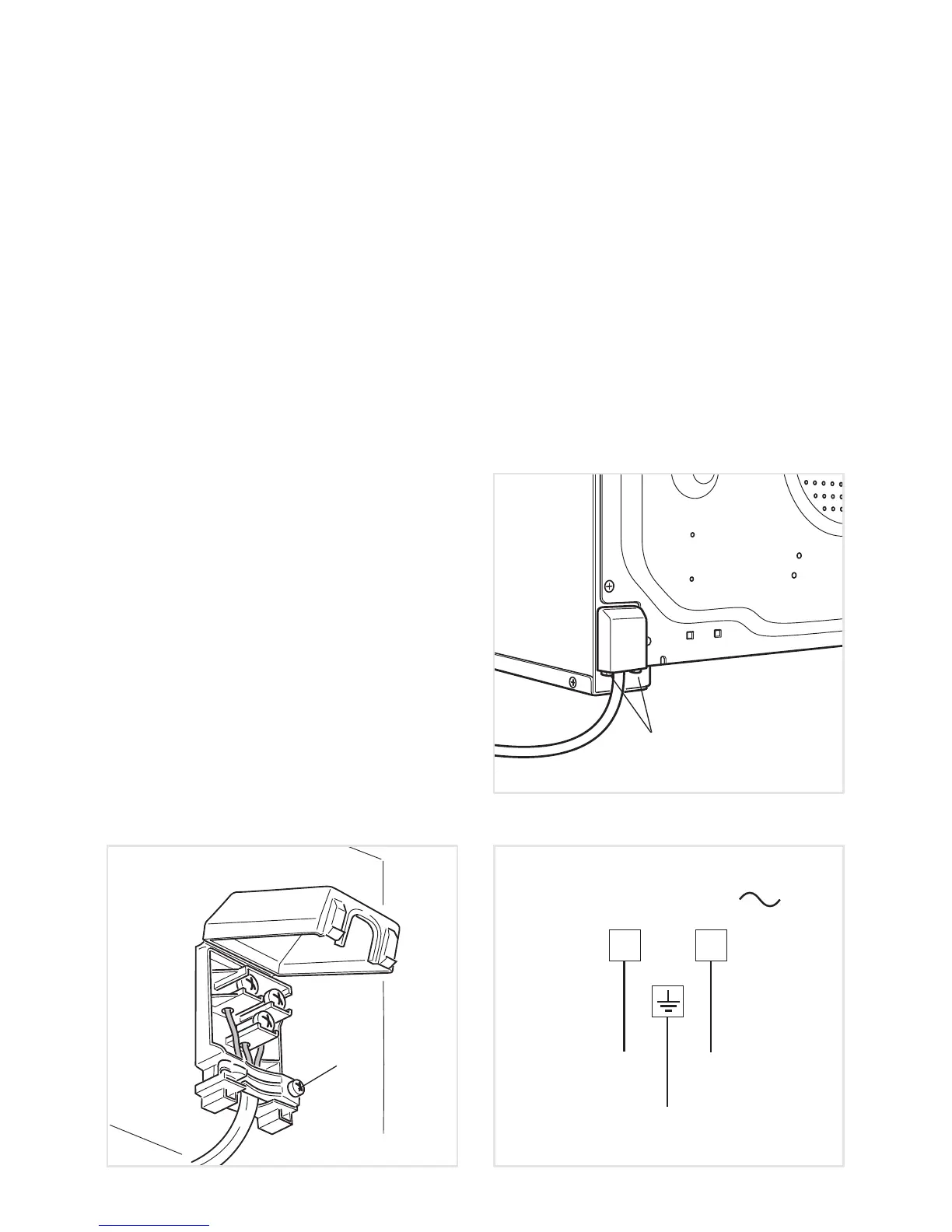

Figure 6
Figure 5
Figure 7
220 - 240 V
